IEC60529 IPX5 IPX6 Ingress Protection Test Equipment Sand And Dust Test Chamber

IEC60529 IPX5 IPX6 Ingress Protection Test Equipment Sand And Dust Test Chamber

The sand and dust test chamber is designed and manufactured according to IEC60529-2001 < Degrees of protection provided by enclosure (IP code)> Fig 2, IEC60598-1-2008 and etc. It artificially simulates the dust environment to test the dust-proof ability of the test samples.

The test device is suitable for electrical products’ sand and dust test of first characteristic numeral 5 and 6 (IPX5 and IPX6).

The chamber can provide a non-laminar flow of dust-loaded vertically circulating air, can be timed controlled; also be equipped with a vacuum pump which can vacuum the test sample, the exhaust volume and pressure can be adjusted; in addition, the inside chamber is configured with a airflow temperature control device, to ensure that the test is under standard environmental conditions.

According to the standard requirements, this test chamber uses artificial simulated dust environment to test the dust-proof ability of the sample. The detailed requirements and qualification criteria should be in accordance with IEC60598-1-2008, IEC60529-2001 or product standards.

Function parameters:

1. Inner material: SUS304 stainless steel plate
2. large observation window in the middle of the door
3. The unique air duct design ensures the non layered vertical circulating air flow in the box
4. Square-meshed sieve: nominal wire diameter is 50μm, nominal width of a gap between wires is 75μm
5. Sand and dust concentration in the chamber and pipe is 2kg~4kg/m³
6. Air flow speed: ≤2m/s
7. Test sand (or talc) dosage: 2kg ~ 4kg / m³
8. PLC and touch screen intelligent control system
9. PT100 test sensor
10. Safety protection device
11. Instrument over temperature protection function
12. Phase loss protection of power supply
13. Leakage circuit breaker
14. Power supply: AC380 V, 50 Hz
15. Door: tempered glass door
16. Vacuum pump 60~600L/H
17. Pressure regulating valve, suction nozzle and pressure regulating three piece set
18. Controller: programmable controller (this controller has the following functions of arbitrary setting)

1. blowing dust time (stop, blowing) can be adjusted
2. Cycle period: arbitrarily adjustable
3. Preset test time: 0s ~ 999h99m99s, adjustable
4. Power on: off-on-off

19. Blower: all plastic centrifugal fan
20. Remarks: This device can not meet the sand and dust test with wind source.
21. Operating environment: temperature 15~35 ℃, humidity 25~75% HR

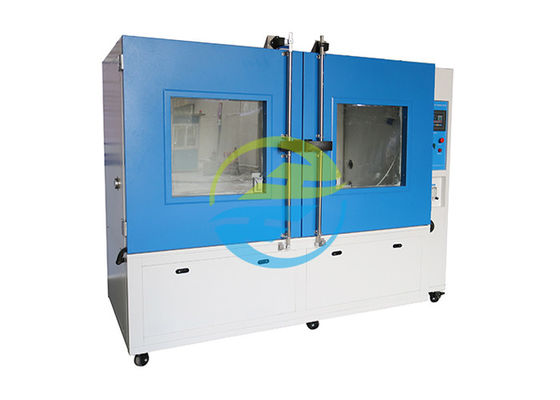

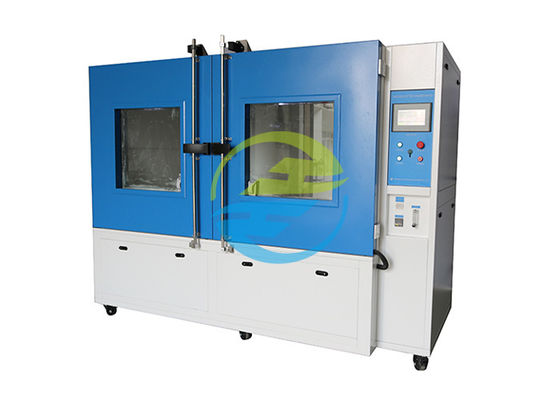

Picture for reference:
