Spring Operated Impact Hammer For IEC60068-2-75 IEC Test Equipment

Brand Name:	HongCe
Model Number:	SH-1/SH-2/SH-5/SH-6
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV, ITS, CSA, BV, SGS, CNAS(cost additional)

Impact Energy:

0.14, 0.2, 0.35, 0.5, 0.7, 1 J

Impact Element Mass:

250g±5g Or 500g±5g

Material:

Stainless Steel, Polyamide

Standard:

IEC60068-2-75

Certificate:

ISO 17025 CNAS & ILAC Test Report

Model:

Single Energy Or Adjustable Energy Can Be Option

Product Name:

Spring Operated Impact Hammer

IK Ratings:

IK02, IK03, IK04, IK05, IK06

Packaging Details:

Aluminum box

Highlight:

Spring Operated Impact Hammer

IEC 60068-2-75 IEC Test Equipment

IK06 IEC Test Equipment

Product Description

Spring Operated Impact Hammer for IEC60068-2-75 IEC Test Equipment

Standard:

IEC 60068-2-75 Environmental testing –Part 2-75: Tests – Test Eh: Hammer tests.

IEC 60065, IEC60335-1, IEC60598-1 and etc. IEC Test Equipment

Feature:

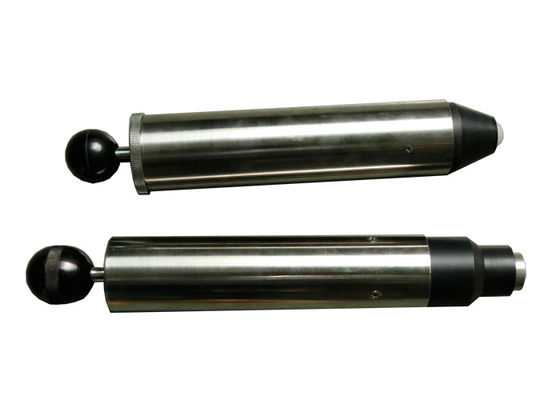

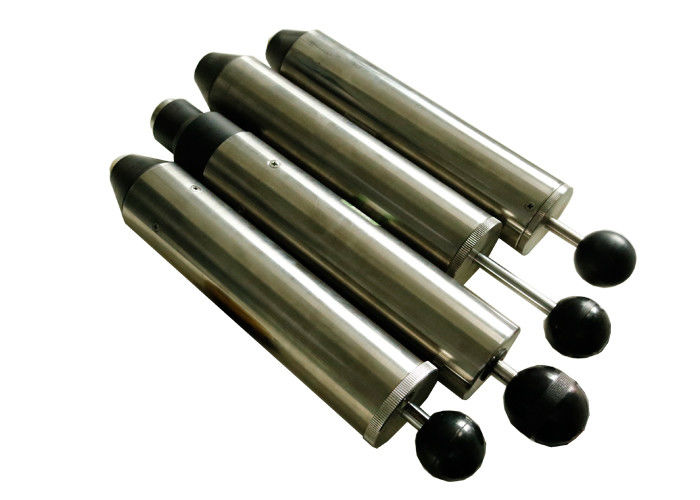

The construction consists of a moving hammer head having a hard polyamide hemispherical face, mounted in a cylindrical body. A knob is attached to the rear of the hammer shaft for the purpose of compressing the hammer spring and setting the striking mechanism. The mechanism is released by applying pressure to the front nose cone. Blows to the sample under test are applied by pushing the release nose slowly against the sample until the release mechanism operates, allowing the spring to propel the hammer against the sample.

Model SH-1: Single impact energy model (0.14J ± 0.014J; 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, for option)

Model SH-2: Single impact energy of 2J± 0.1J, mass of striking element is 500g, hammer heads made of steel with r=25mm, 10N release force.

Model SH-5: Adjustable model with five impact energy of 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, mass of striking element is 250g.

Model SH-6: Adjustable model with six impact energy of 0.14J ± 0.014J; 0.2J± 0.02J; 0.35J± 0.03J; 0.5J± 0.04J; 0.7J± 0.05J; 1.0J± 0.05J, mass of striking element is 250g.

Parameter:

Model	SH-0.14/SH-0.2/SH-0.35/SH-0.5/SH-0.7/ SH-1	SH-2 IEC Test Equipment	SH-5	SH-6
Impact energy(J)	Single energy 0.14; 0.2; 0.35; 0.5; 0.7; 1.0 J for option	Single energy 2±0.1	Adjustable model with five impact energy 0.2 and 0.35, 0.5, 0.7, 1	Adjustable model with six impact energy 0.14 and 0.2, 0.35, 0.5, 0.7, 1
Impact element mass	250g±5g	500g±5g	250g±5g	250g±5g
Overall mass	1250g±10g	1500g±10g	1450g±10g	1450g±10g
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel

Spring Operated Impact Hammer For IEC60068-2-75 IEC Test Equipment 0
