Digital Flow Meter Accurate Control IPX5 IPX6 Jet Nozzle IP Test Equipment

Brand Name:	HongCe
Model Number:	HH0804
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV, ITS, CSA, BV, SGS, CNAS(cost additional)

Usage:

Water Ingress Protection Test

Product Name:

IPX5-6 Handheld Jet Nozzle Test Device

Standard:

IEC60529

Material:

Stainless Steel

Nozzle Diameter:

Ф6.3mm Of IPX5, Ф12.5mm Of IPX6

Flow Control:

Digital Flow Mater

Test Item:

IPX5 And IPX6

Nozzle:

Interchangeable

Packaging Details:

Aluminum box

Highlight:

Jet Nozzle IP Test Equipment

IPX6 IP Test Equipment

IEC 60529 IP Test Equipment

Product Description

Digital Flow Meter Accurate Control IPX5 And IPX6 Jet Nozzle IP Test Equipment

Product information:

The Jet Nozzle IPX 5/6 Set, is used for the verification test of the degree of protection to the risk of water penetration provided by the wrapper of equipment in fulfillment of IPX5 and IPX6 according to the IEC 60529 Section 14.2.5. & 14.2.6.

IPX 5/6 sprinkler test nozzle is designed for IPX 5X6 sprinkler test of large or small products.

Sample Range:

Such as electronic appliances, lamps, cabinets, electrical components, automobiles, motorcycles electrical products (such as automotive meters, switches, micro-motors, etc.)

Feature:

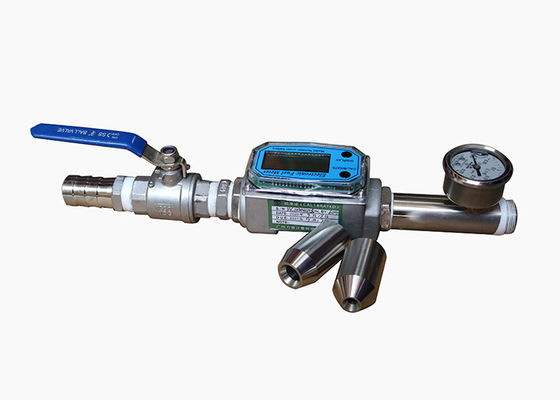

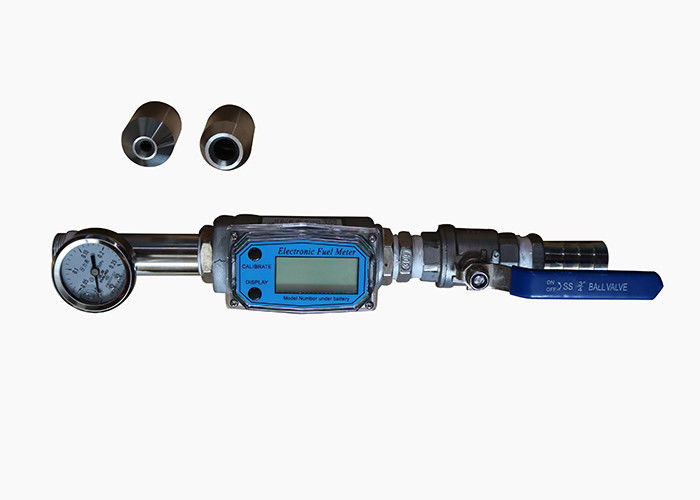

The Jet Nozzle IPX 5/6 Set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.

– Interchangeable nozzles that assemble easily to the jet handle.

– Stainless steel joint, easy to butt fiber hose.

– Designed and manufactured in the CHINA.

Parameters:

Model	HH0804
Test item	IPX5 and IPX6
Nozzle diameter	Ф6.3mm of IPX5, Ф12.5mm of IPX6
Water flow	12.5±0.625L/min of IPX5, 100±5 L/min of IPX6
Material of nozzle	Stainless steel
According	IEC60529

Digital Flow Meter Accurate Control IPX5 IPX6 Jet Nozzle IP Test Equipment 0
