IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3 IPX6

IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3 IPX6

  • IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3  IPX6
  • IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3  IPX6
IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3  IPX6
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional)
Model Number: HH0802、HH0804
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 45 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Standard: IEC60529, IEC 60884-1, IEC 60335-1, IEC 60598-1 Warranty: 1 Year
Control: PLC Intelligent Control Needle Hole: Φ0.4mm
Turntable Diameter: 200/400/600/800/1000/1200/1400/1600mm Optional Water Flow: 12.5±0.625L/min For IPX5, 100±5 L/min For IPX6
Included Angle Of Two Holes: IPX3: 120°; IPX4: 180° The Nozzle Diameter: Ф6.3mm For IPX5, Ф12.5mm For IPX6
The Distance From Jet Nozzle To Enclosure: 2.5~3m Pressure Gauge: 0~0.25MPa
High Light:

IEC 60529 Ingress Protection Test Equipment

,

IPX6 Ingress Protection Test Equipment

IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3 - IPX6



This IPX3~6 waterproof test system includes following:



Oscillating Tube Tester for IPX3 and IPX4 HH0802

Product information:

Oscillating tube tester is designed and manufactured in accordance with the standard requirement of IEC60529 IPX3 and IPX4,IEC60335-1 clause 15.1. It is used for the waterproof test of the electrical equipment.

The oscillating tube part of this device is controlled by adjustable-speed motor and crank-link mechanism. This device is reciprocating swing from the place of ±60°to another one of ±175°with the speed required by the standard through machine adjusting angle.

The angle adjustment is accurate. The structure is stable and durable. It is equipped with rotating stage through which the rotating of 90°can be achieved.

Technical parameters:

No. Item parameters
1 Water supply

Water flow rate>10L/min±5% clean water without inclusion.

This device is equipped with clean water filtration unit

2 The size of the oscillating tube

Standard coming with R400, R600, R800 oscillating tubes

(other size R200,R1000,R1200,R1400,R1600mm can be optional), stainless steel

3 Water hole Φ0.4mm
4 Included angle of two holes IPX3: 120°; IPX4: 180°
5 pendulum angle IPX3: 120°; IPX4: 360°
6 Raining speed

IPX3: 4s/time(2×120°);

IPX4: 12s/time(2×360°);

7 Water flow Can be set according to the size of the pendulum and the number of the pin holes (0.07 L/min per hole)
8 Testing time 0.01S~99 hours 59mins,can be preset
9 Pressure gauge 0~0.25MPa
10 Site requirements

Dedicated IP waterproof test room, The ground should be flat with illumination

10A waterproof leakage switch(or socket)used for equipment. With good function of inflow and drainage. Ground installation

11 The area According to the oscillating tube chose


Handheld Jet Nozzle HH0804

Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.

Application:It is used for the testing of IPX5 and IPX6.

Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)

Feature:With pressure gauge, it can be used by replacing the nozzle, it also can match the complete set of waterproof system.

Technical parameters:

No. Item IPX5 IPX6
1 Water supply

Water flow rate > 12.5L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

Water flow rate >100L/min±5% clean water without inclusion.

It can be achieved by the stainless steel water tank and pressurized equipment

2 The nozzle diameter Ф6.3mm Ф12.5mm
3 Water flow 12.5±0.625L/min, Flow meter is adjustable 100±5 L/min, Flow meter is adjustable
4 The distance from jet nozzle to enclosure 2.5~3m 2.5~3m
5 Testing time Not less than 1min/m²(not less than 3 mins) Not less than 1min/m²(not less than 3mins)
6 Pressure gauge 0~0.25MPa 0~0.25MPa
7 Site requirements

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation

Dedicated IP waterproof test room whose width is more than 3m,

With good function of inflow and drainage. Wall installation



Picture view:

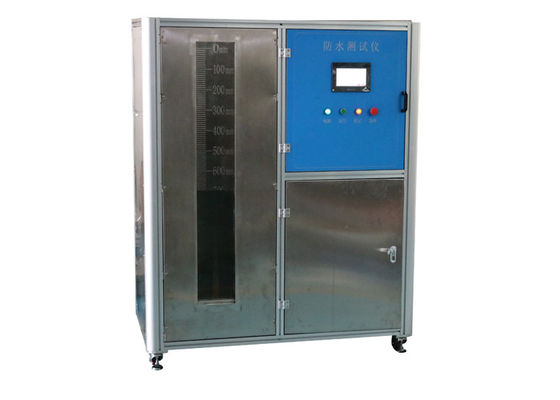

IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3  IPX6 0

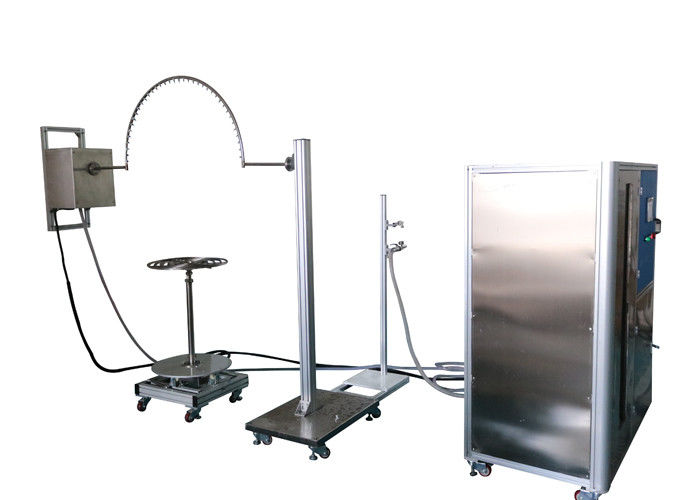

IEC60529 Ingress Protection Test Equipment Waterproof Test System For IPX3  IPX6 1
