| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HH0803 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Carton box |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Product Name: | Handheld Spray Nozzle Tester | Warranty: | 1 Year |
|---|---|---|---|
| Standard: | IEC60529 | Application: | Water Spray Testing For IPX3 IPX4 |
| Function: | Ingress Protection Level Test | Material: | Brass + Stainless Steel |
| Water Flow: | 10L/min±5% | External Diameter Of The Spray Nozzle: | Ф102mm |
| High Light: | IEC 60529 Ingress Protection Test Equipment,IPX4 Ingress Protection Test Equipment,Handheld Spray Nozzle Tester |
||

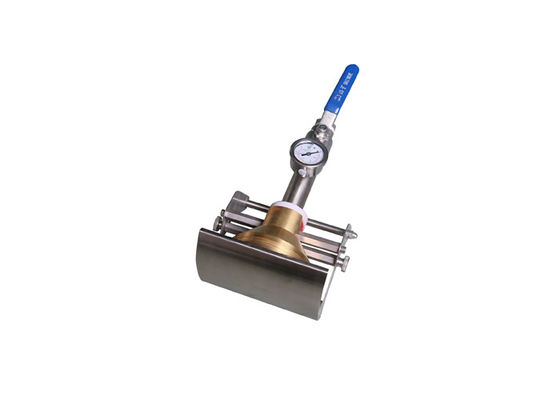

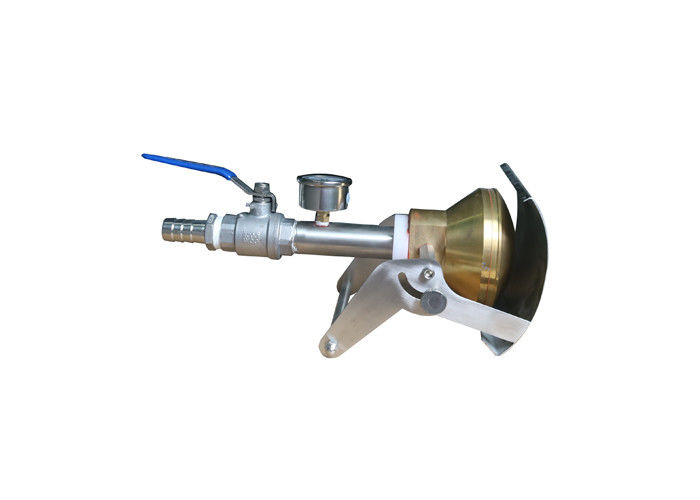

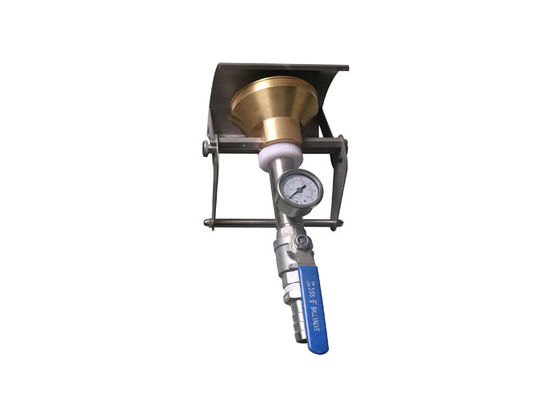

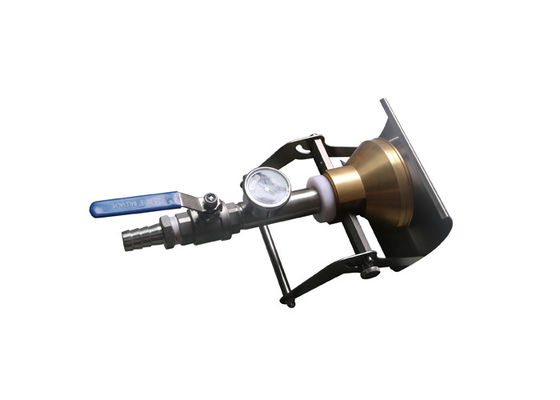

IEC60529 Ingress Protection Test Equipment Handheld Spray Nozzle Tester With 121 Holes
Standard description:
15 Moisture resistance
15.1 The enclosure of the appliance shall provide the degree of protection against moisture in accordance with the classification of the appliance.
Compliance is checked as specified in 15.1.1 taking into account 15.1.2, the appliance not being connected to the supply mains.
The appliance shall then withstand the electric strength test of 16.3 and inspection shall show that there is no trace of water on insulation which could result in a reduction of clearances and creepage distances below the values specified in clause 29.
NOTE The external enclosure is carefully wiped to remove any surplus water before inspection. Care has to be taken when dismantling to avoid displacing any water within the appliance. Ingress Protection Test Equipment
15.1.1 Appliances other than those classified IPX0 are subjected to the tests of IEC 60529 as follows:
– IPX1 appliances as described in subclause 14.2.1;
– IPX2 appliances as described in subclause 14.2.2;
– IPX3 appliances as described in subclause 14.2.3a;
− IPX4 appliances as described in subclause 14.2.4a;
– IPX5 appliances as described in subclause 14.2.5;
– IPX6 appliances as described in subclause 14.2.6;
– IPX7 appliances as described in subclause 14.2.7. For this test the appliance is immersed in water containing approximately 1 % NaCl.
NOTE The hand-held spray nozzle may be used for testing appliances that cannot be placed under the oscillating tube specified in IEC 60529.
Water valves containing live parts and that are incorporated in external hoses for connection of an appliance to the water mains are subjected to the test specified for IPX7 appliances. Ingress Protection Test Equipment
Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX3 and IPX4, IEC60884-1, IEC60335-1, IEC60598-1.
Application:It is used for the testing of IPX3 and IPX4.
Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)
Feature:The difference between IPX3 and IPX4 is that the baffle should be removed in the IPX4 test. To make the shell in every possible direction is splashing, this device can be used with a rotating table of the sample.
Ingress Protection Test Equipment
Parameters:
| Item | Parameter |
| Input power | Single phase AC220V,50Hz |
| Water supply | Water flow rate is ＞10L/min±5%, pressure is 50～150kpa clean water without inclusion. |
| Spray nozzle parameters |
External diameter: Ф102mm spherical diameter: SФ75.5mm 121 holes of Ф0.5mm; 1 hole at the centre 1 inner circles of 12 holes at 30°pitch 4 outer circles of 24 holes at 15°pitch Moving shield-Aluminum Spray nozzle-Brass |
| Water flow | 10L/min±5%,Flow meter is adjustable |
| Pressure gauge | 50～150Kpa,Range of pressure gauge 0～0.25Mpa |
| Baffle | Removable |
| Site requirements |
Dedicated IP waterproof test room,The ground should be flat with illumination With good function of inflow and drainage. |
| Testing time | Manual control, at least 5min |
