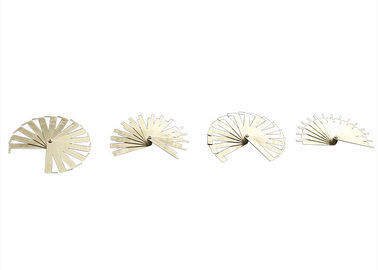

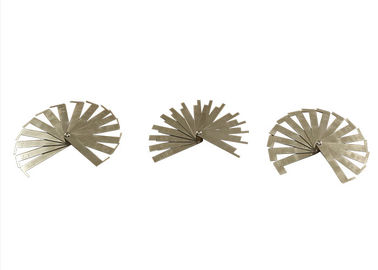

10 30 Size Stainless Steel IEC 60884-1 Creepage Distance Test Gauges

10 30 Size Stainless Steel IEC 60884-1 Creepage Distance Test Gauges

10 30 Size Stainless Steel IEC 60884-1 Creepage Distance Test Gauges

Brand Name: HongCe
Model Number: CK-5
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 30 set per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Size Specification:
30 Creepage Distance Gauges
STANDARD:
IEC60884-1, IEC60598, IEC60335 Etc
Material:
Stainless Steel
Name:
Creepage Distance Testing Card
Model:
CK-5
Warranty:
1 Year
Usage:
To Verify The Creepage Distance Between Conductive Components
Lead Time:
Within Very Short Time
Packaging Details:
Carton box
Highlight:

30 Creepage Distance Gauges

,

Creepage Distance Testing Card

Product Description

IEC 60884-1 Creepage Distance Test Gauges Stainless Steel Of 10 Size / 30 Size



Product information:

We have five kinds of Creepage Distances Test Cards, CK1/CK2/CK3/CK4/CK5.These test gauges conform to IEC60335-2-6 clause 29,IEC60335-2-9 clause 29,and IEC60335-1 Clause 29 etc. They are used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.



Technical parameters:

Model No. Size Specification
CK-2 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8 Total 15 creepage distance gauges
CK-5

1.0mm/1.05mm/1.1mm/1.2mm/1.25mm/1.3mm/1.4mm/1.5mm/1.6mm/1.7mm/1.8mm/1.9mm/2.0mm/2.1mm /2.2mm /2.4mm

/2.5mm/2.8mm/3.2mm/3.6mm/4.0mm/4.2mm/4.5mm/5.0mm/5.6mm/6.3mm/7.1mm/8.0mm/9.0mm/10.0mm Total 30 creepage distance gauges

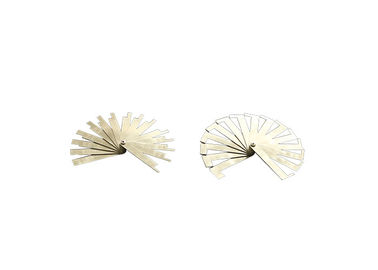

10 30 Size Stainless Steel IEC 60884-1 Creepage Distance Test Gauges 0

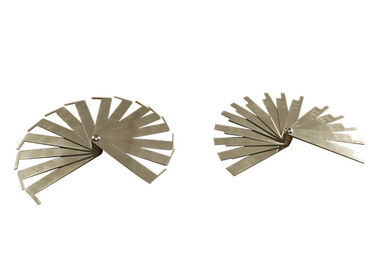

10 30 Size Stainless Steel IEC 60884-1 Creepage Distance Test Gauges 1
