| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HT-I01T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Aluminum box |
| Delivery Time: | 7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 30 set per month |
| Warranty: | 1 Year | Usage: | Water Ingress Protection Test |
|---|---|---|---|
| Product Name: | Test Sphere Probe | Force: | With Force Of 0-50N |
| Material: | Metal + Nylon | Handle Diameter: | Ф10 |
| Rigid Test Ball Diameter: | SФ50+0.05 | Handle Length: | 100 |
| High Light: | IEC 60529 Test Sphere Probe,In50N gress Protection Test Equipment |
||

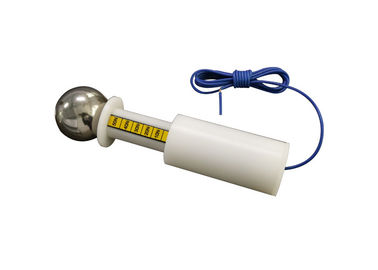

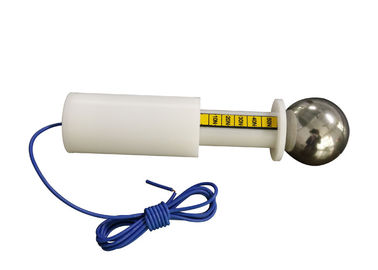

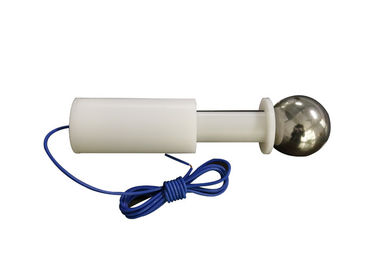

IEC 60529 IP1X Ingress Protection Test Equipment Test Sphere Probe With Force Of 0-50N
This probe is intended to verify protection of persons against access to hazardous parts for an IP1 Code. Also used to verify protection from access with the back of the hand for an IP suffix A code.
Standard:IEC61032 fig.1, IEC60529 IP1 and IEC60065.
Application:This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.
Test sample:Easily accessible enclosure live parts or mechanical parts. Ingress Protection Test Equipment
Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force.
Parameters:

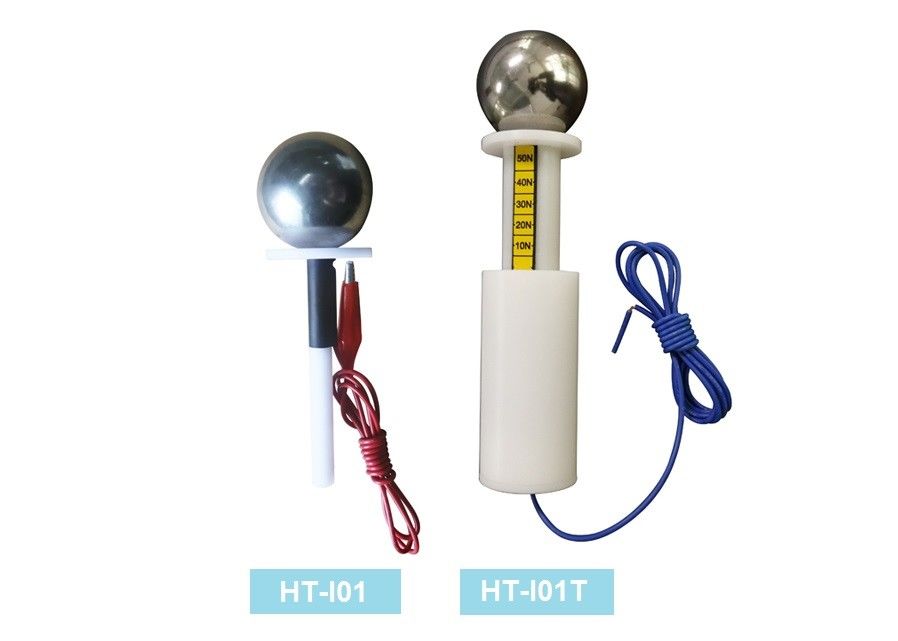

| Model | HT-I01 | HT-I01T |
| Name | Test probe A | Test probe A with force |
| Rigid test ball diameter (metal) | SФ50+0.05 | SФ50+0.05 |
| Baffle diameter (nylon) | Ф45±0.2 | Ф45±0.2 |
| Baffle thickness | 4 | 4 |
| Handle diameter | Ф10 | Ф10 |
| Handle length (nylon) | 100 | 100 |
| Force | ---- | With force of 0-50N |
