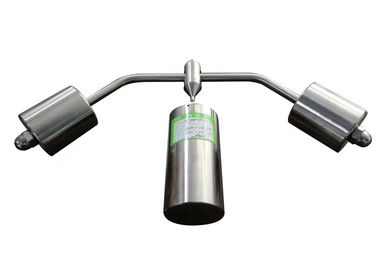

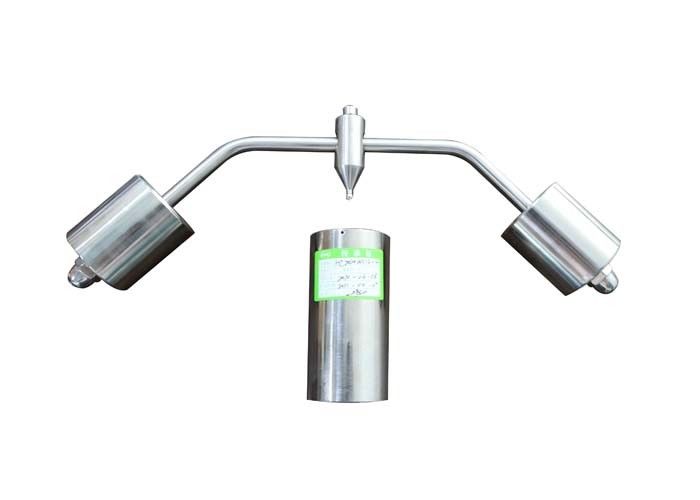

IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance

IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance

IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance

Brand Name: HongCe
Model Number: HC9933
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 50 set/ month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
Calibration certificate(cost additional)
Material:
SUS#304
Standard:
IEC 60884-1
Application:
Heat Resistance Test
Radius Of Steel Ball:
SR2.5mm
Press Force:
20N
Support Base:
Ф50X100mm
Product Name:
Ball Pressure Test Apparatus
Warranty:
1 Year
Packaging Details:
Aluminum Box
Highlight:

Ball Pressure Test Apparatus

,

IEC 60884-1 Test Equipment

Product Description

IEC 60884-1 IEC Test Equipment Ball Pressure Test Apparatus For Heat Resistance Test



Standard: IEC 60884-1 2013 clause 25.2, 25.3 and figure 37

Application: This device is use for heat resistance test to verify the heat resistant performance of insulating material covers and outer parts of the electric appliance

Test sample: Insulating material covers and outer parts of the electric appliance

Feature: This device is made in according with figure 37.

The test is made in a heating cabinet at a temperature of (125 ± 2) °C. After 1 h the ball shall be removed from the specimen, which is then immersed within 10 s, in cold water for cooling down to approximately room temperature. The diameter of the impression caused by the ball is measured and shall not exceed 2 mm.

Parameters:

  1. Radius of steel ball: SR2.5mm
  2. Press force: 20N
  3. Support base: Diameter 50mm, length 100mm, with a thermometer hole, made of stainless steel



Load 20N±0.2N





 Steel ball Ball bearing steels R2.5mm ISO 3290
Material 304 stainless steel support Ф50X100 with Ф2.5X25 thermometer hole
Standards IEC60335,IEC60695 etc.

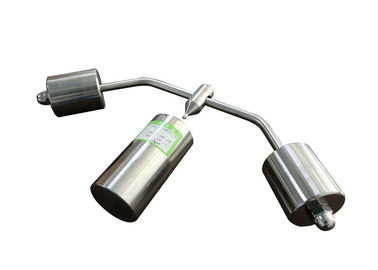

IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance 0

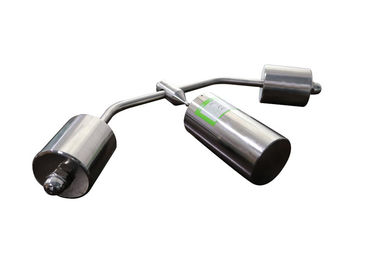

IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance 1IEC 60884-1 Ball Pressure IEC Test Equipment For Heat Resistance 2
