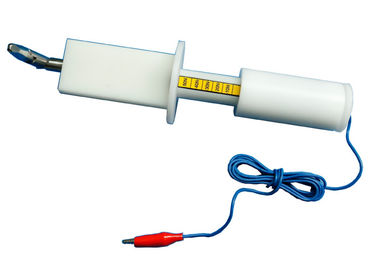

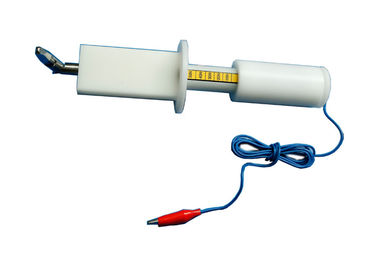

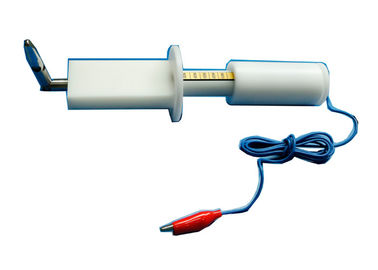

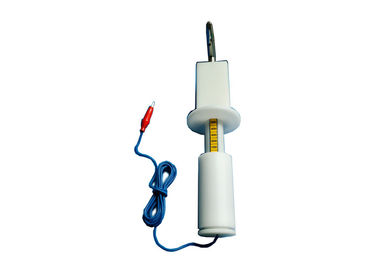

IEC 61032 Figure 2 / IEC 60529 Standard Test Finger Shell Anti Electric Shock With Thrust 10N 20N 30N

Brand Name:	HongCe
Model Number:	HT-I02T
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	30 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

COLOR:

White

MATERIAL:

Stainless Steel + Nylon

FORCE:

10N, 20N, 30N

STANDARD:

IEC 61032 Figure 2/ IEC 60529

Packaging Details:

Plywood

Highlight:

iec tester

laboratory test equipment

Product Description

Shell anti electric shock IEC 61032 figure 2/ IEC 60529 standard test finger with thrust 10N 20n 30n

Standard:

IEC 60884-1 2013 clause 23.2, VDE0620 clause 23.2

Application:

This probe also has provision to apply the force 0~ 75N with minimum resolution of 5N provided with banana pin at back side to check the continuity during the test.

The standard test finger is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. It is a special instrument for household and similar electrical appliances shell against electric shock test, an essential lab ware for the quality inspection departments and research units to detect relevant household appliances product safety performance.

IEC 61032 Figure 2 / IEC 60529 Standard Test Finger Shell Anti Electric Shock With Thrust 10N 20N 30N 0

Parameters:

Parameters /Model	HT-I02T
Name	Standard test finger with force
1	30±0.2
2	60±0.2
3	80±0.2
4	180±0.2
5	R2±0.05
6	S4±0.05
7	37o 0 -10’
8	14 o 0 -10’
9	Ф12 0 -0.05
10	Ф50
11	20±0.2
12	Ф75±0.2
13	5±0.5
14	10-30N force
15	IEC60529

Usage

1. The standard test finger joint part cannot be touched with the live parts, or cannot be close to the dangerous parts, and the 50mm-20mm baffle cannot enter.

2. The test of preventing from dangerous parts requires the test probe B with 10N±3N thrust. Generally it needs to work with a force gauge.

3. The anti-electric shock requires working with anti-shock probe experiment device: connected to the anti-shock probe experiment device (40V-50V), processing the test according to the relative standard, the buzzer ring is electric shock prompted. View the pictures below:

IEC 61032 Figure 2 / IEC 60529 Standard Test Finger Shell Anti Electric Shock With Thrust 10N 20N 30N 2
