250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm

250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm

  • 250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm
250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate (cost additional )
Model Number: HEB-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: carton box
Delivery Time: 3 days
Payment Terms: T/T
Supply Ability: 50 set /month
Contact Now
Detailed Product Description
Length: 250(mm) Diameter: Φ83(mm)
Material: Aluminum Alloy Surface: Anodized
High Light:

iec tester

,

laboratory test equipment

250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm



Standard

GB17761-2018, GB3565-2005,ISO4210-2014..



Application

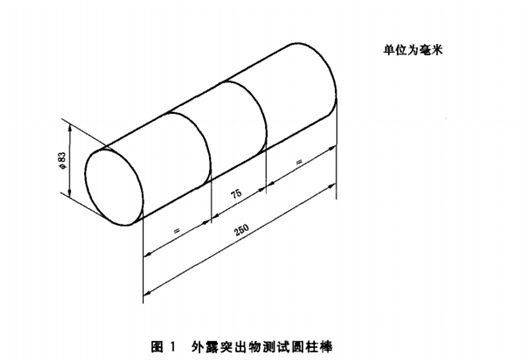

This test stick is used for the test of "electric bicycle protrusion" in GB17761-2018 standard. It conforms to the test of the protrusion test cylindrical rod (simulated human limb) specified in GB 3565-2005 clause 3.9. The front and rear wheels of the test vehicle landed, and the vehicle body is perpendicular to the support surface, and the test cylinder rod is brought close to the exposed protrusion on the test vehicle in various possible postures. A 75 mm long reachable protrusion in the middle of the cylindrical rod is an exposed protrusion, the shape and size specified in GB 3565-2005 clause 4.2 are measured using a vernier caliper and a radius gauge.



Parameter

Item Parameter
Length 250(mm)
Diameter Φ83(mm)
Material Aluminum alloy
Surface Anodized



250mm Electric Bicycle Protrusion Test Stick Aluminum Alloy Diameter Of 83mm 0
