IEC62133-2 Small Cells And Battery Testing Equipment Ingestion Gauge

Brand Name:	HongCe
Model Number:	HC6214
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	1000 Sets / Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third Party Calibration Certificate (Cost Additional)

Material:

Stainless Steel

Standard:

IEC62133

Diameter:

31.7mm+0.1mm

Specimen:

Small Cell And Battery

Packaging Details:

Carton Box

Highlight:

battery test chamber

battery discharge test equipment

Product Description

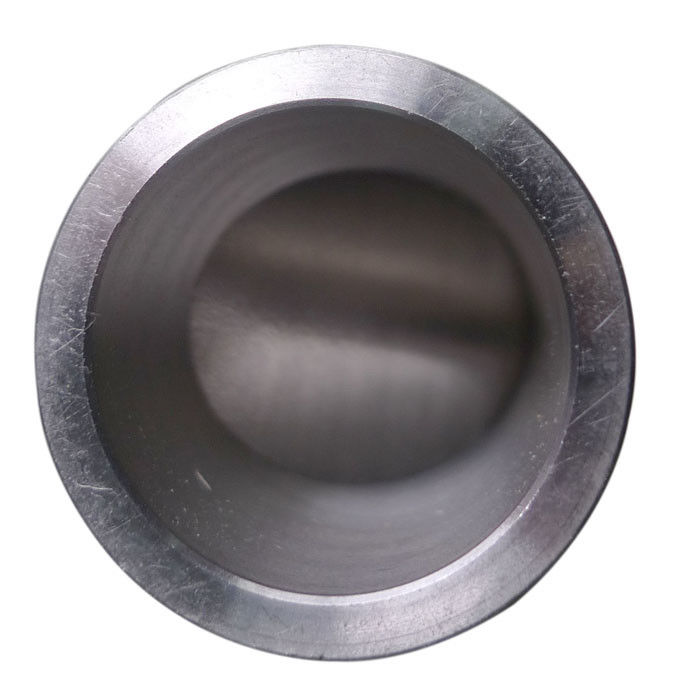

IEC62133 Figure 2 Small Cell And Battery Testing Equipment Ingestion Gauge

Product information:

It conforms to IEC62133:2017 clause 8.2, 10 and fig.2, ISO 8124-1 5.2 and fig. 22, IEC60086-4 clause 7.2 and fig 9 and etc.

It is used to check whether there is possibility that the small cells and batteries or children's products like the toys can be swallowed by the children under 36 months.

Testing principle:

The testing object is placed into the tester from any directions. If it can reach to the button of the tester, the object is proved to be small object.

Material:

Stainless steel

IEC62133-2 Small Cells And Battery Testing Equipment Ingestion Gauge 0
