Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃

Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃

  • Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃
  • Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃
  • Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃
  • Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃
Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration certificate (cost additional)
Model Number: HH0812
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T,
Supply Ability: 10 sets prt month
Contact Now
Detailed Product Description
Rotary Motor Power: 1/4HP, Speed 5RPM Temperature Range: RT+20℃~200℃ Or 300℃(for Option)
Ventilation Volume Adjustment Range: 8~20 Times / Hour Time: 999.9 Hours Can Be Set
Heater: Screw Pipe Type Heater Power: 3.2Kw; With Two Section Of Heating Choice Model
High Light:

iec tester

,

laboratory test equipment

IEC 60884-1 2013 clause 16.1 Free-air Oven Heating Chamber RT+20℃~200℃ or 300℃





Standard

IEC 60884-1 2013 clause 16.1

Application

This device is use to perform thermal aging test to polymer materials (plastics, plastics and electrical insulating materials such as: wire and cable sheathing, heat shrinkable tube, rubber test or PVC materials, and the insulating components, or use for drying, baking, heat treatment and so on

Test sample

polymer materials, wire and cable sheathing, heat shrinkable tube, PVC and so on

Feature:

  1. Adopt import intelligent P.I.D thermostat and high precision PT100 thermocouple sensor. Can ensure that the temperature fluctuation is less than 0.5% (calculated at the maximum temperature);
  2. Heater: screw pipe type heater, power: 3.2Kw; with two section of heating choice model;
  3. Temperature range: RT+20℃~200℃ or 300℃(for option)
  4. with super high temperature protection function, can automatically cut off and stop heating;
  5. Built in the circulation system, to ensure the temperature uniformity: 1% (calculated at the maximum temperature);
  6. Built-in adjustable ventilation outlet: by changing the size of the air outlet, to change the size of the ventilation volume, the adjustment is very convenient.
  7. Ventilation volume adjustment range: 8~20 times / hour.
  8. Timer: 999.9 hours can be set. (optional power down and hold, auto start function)



Parameters:



Working box 50*50*50cm (other size can be customized)
Rotary motor power 1/4HP, speed 5RPM
Chamber material Double stainless steel interlayer
Glass window internal lighting lamp can be convenient to observe the change of test sample
Casters

Four, movable

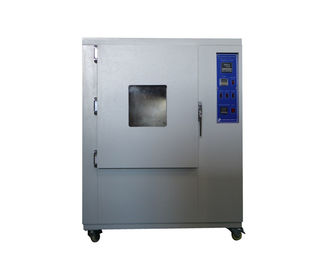

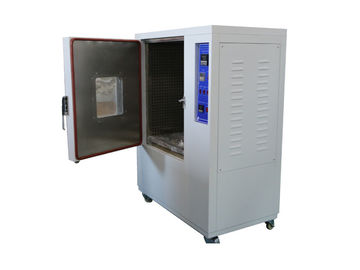

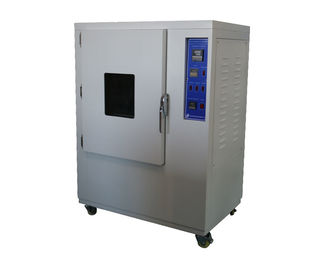

Picture for reference:



Circulating Aging Oven IEC Test Equipment , Free - Air Heating Chamber RT+20℃~200℃ Or 300℃ 0
