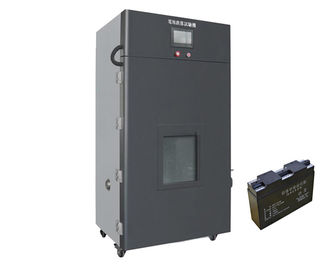

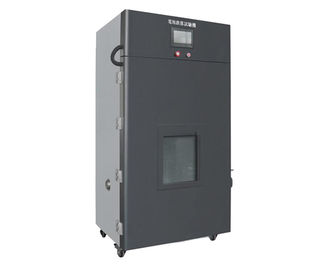

Pneumatic Dropping And Motor Lifting Battery Drop Test Machine with PLC Touch Screen Control

PLC Touch Screen Control Pneumatic Dropping And Motor Lifting Battery Drop Test Machine

Standard

IEC62133 clause 7.3.3 ,8.3.3 ,IEC60086-4 clause 6.5.4 ,IEC 60086-1, GB31241-2014 and etc .

Applications

This machine applies for small consumer electronic products like mobile phone, mobile batteries, interphone,electronic dictionary ,CD/MD/MP3 etc. and components free dropping testing. Specimen automatically lifting to pre-setting height, then free drop and shock on the drop plate.

Parameters

Features

1. This machine available for package face, corner, edge free drop testing
2. With height digital display instrument and tracing height with encoder, so can measure the precision drop height.
3. The drop height tolerance within2% or 10mm；

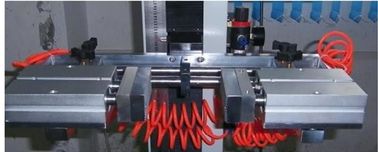

4. Adopt pneumatic structure, fix the specimen with special fixture (range adjustable), push the drop button, pneumatic cylinder open, specimen free dropping . The drop height controllable, and with height steel ruler which makes drop height available. Various kinds drop floor optional. Meets different testing standards

 Notice

1. This machine control cabinet with 220V power, non professionals shall not open the cabinet and disassemble the components .
2. This machine used for material testing, prevent for people standing
3. The machine should be placed on flat floor, and keep machine dry and clean .
4. After finish testing, low down the arm, and cut off the power supply
5. Do not cut off power when testing .
