| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HB6206 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Drop Ball Weight: | 9.1kg | Dropping Height: | 0~880mm |
|---|---|---|---|
| Crossing Bar Diameter: | 15.8 Mm | Test Space: | W300 X D300 X H300mm |
| Internal Material: | 304# Stainless Steel | Elevating Method: | Motorized |
| High Light: | battery testing machine,battery test chamber |
||

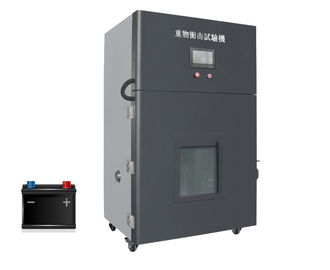

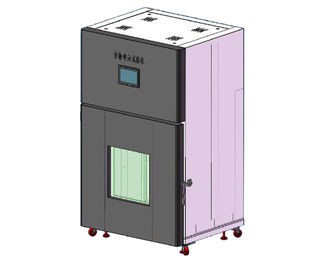

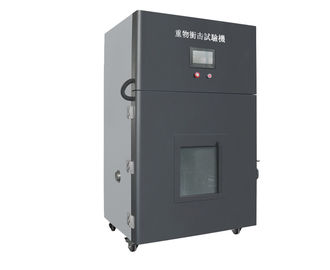

9.1kg Stainless Steel Single Door Motorized Elevating Battery Weight Impact Testing Machine
Standard
IEC62133,IEC60086-4 clause 6.5.2,IEC 60086-1 , UL1642, UL2054-2005, UN38.3, GB/T 18287-2013 , SJ/T 11169-1998,YD 1268- 2003,SJ/T 11170-1998 , GB/T 2900.11-1988 ,MT/T 1051-2007 ,GB31241-2014 and etc.
Application
To test battery safety performance through different hammer and different stress areas from different height. The battery verifies as qualified on the condition of no flames or explosion after this heave impact test.
Test Method
Test specimens is placed on a plane. A bar with its diameter at 15.8mm placed on the central position of test specimens in cross direction. A heavy of 9.1kg drop free from a height of 610mm down to the test specimens. Each test specimen have to bear a impact test and each test need different test specimens.
Parameters
| Drop Ball Weight | 9.1kg |
| Dropping Height | 0~880mm (The heavy can raise to a height and release to ensure the heave drop free without incline and swing) |

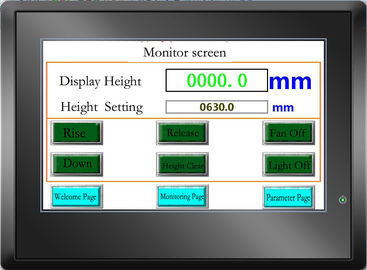

| Control Method | PLC Touch Screen Control+ Remote Control |
| Crossing Bar Diameter | 15.8 mm (Place on central position in cross direction and the heavy bar and steel bar is parallel to battery bottom) |
| Test Space | W300 X D300 X H300mm |
| Internal Material | SUS 304# Stainless steel(thickness 1.0mm compensation and external chamber thickness 80mm) |
| External Material | Cool-Rolled Plate ( thickness 1.0mm) |
| Air Vent | 150mm, on the top of back of chamber |
| Chamber Gate | Single Door, Viewing Window, cold-rolled door lock |
| Viewing Window Size | 390 X 360mm(20mm Dual layer glass explosion proof film) |
| Elevating Method | Motorized |
| Top/bottom impact surface | Steel Plate |
| Chamber Size | W940 X D780 X H1620mm |
| Power Source | AC 220V |
| Power | 2.0KW |
| Gross Weight | About 250KG |
Features
1. Standard configuration with 9.1kg heavy and diameter of 15.8mm crossbar ( to meet different standards) ;
2. Encoder displays the height with intelligent control 0～700mm controllable(easy to operate);
3. Double column design with the heavy drop free to reduce the friction between the heavy and wall around and ensure an safety
4. Air vents is designed with to discharge the smell from test room;
5. Dual- layer explosion-proof viewing glass, explosion chamber with independent controller, easy to operate.
Accessories
| 9.1Kg Heavy | 1pcs |
| 15.8mm crossing bar | 1strip |
| Battery Fixture | 1set |
| User Manual | 1Copy |
