| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | calibration certificate (cost additional) |
| Model Number: | HB6203 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood |
| Delivery Time: | 25 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 set /month |
| Inner Chamber Size: | W500 X H500 X D500mm*8 | Inner Chamber Material: | 1.5mm Stainless Steel |
|---|---|---|---|
| Explosion-proof Glass: | Double 200X200 Explosion Proof Glass | Testing Port: | Diamter:50mm |
| Control Panel: | Control The Venting Fan And Lighting | Chambers: | 8(can Be Customized ) |
| High Light: | battery testing machine,battery discharge test equipment |
||

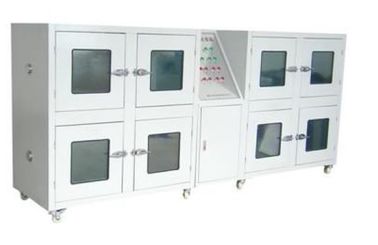

IEC62133 Battery Test Equipment of 8 Chambers Stainless Steel Explosion Proof Test Chamber
Standard
IEC62133 clause 7.2.1,7.3.8,7.3.9,8.2.1, IEC 60086-1,IEC60622,IEC60623,IEC61951,IEC61960, UL1642, QC/T 743 and etc.
Parameters
| Inner Chamber Size | W500 X H500 X D500mm*8 |
| Inner chamber Material | 1.5mm stainless steel |
| External Chamber Material | Cold rolled steel spray treatment |
| Explosion-proof Glass | Double 200X200 explosion proof glass, visible |
| Chamber door | Connected to the chamber by powerful hinge, with explosion proof lock |
| Bottom | One piece of marble slab to protect from battery external short circuit |
| Top | Equipped with a high brightness energy-saving lamps to illuminate the entire test space |
| Venting fan | A strong exhaust fan is installed in the back of the chamber |
| Pressure relief door | Built in the back of each chamber. In the event of a battery explosion, the door will open and release pressure. |
| Testing port | Diamter:50mm cable port with stainless steel cover |
| Control Panel | Control the venting fan and lighting |
| Inside | 2 power line with two insulated handle thread clamp inside the chamber, which is used to clamp the positive and negative pole of the battery |
| Wheels | Installed with universal wheel at the bottom of the chamber |
| Power source | AC 220V 2A |
Feature
Eight anti-explosion chambers, divided into left, middle and right parts
Application
This equipment is used to prevent explosion or burning unnecessary damage to the test personnel in the battery overcharge and over discharge. It is made of steel material with good texture and anti explosion effect.
It is used for when the battery is overcharge and over-discharged, Charge and discharge test, put the battery into the explosion proof test chamber, external charge discharge tester, protect the operators and instruments ,the test chamber can be customized by customer’s requirements .
