IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm

IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm

  • IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm
  • IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm
  • IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm
IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HH0814
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Contact Now
Detailed Product Description
Dripping Rate (Water Flow): 1MM Or 3MM Per Minute, Adjustable Rotating Speed(rpm): 1 ~10 Adjustable(IP 1.2 Standard. Turntable Can Be Tilted 15°)
The Distance Between The Drip Box And The Test Sample: 200MM Needle Hole(mm): φ0 .4
Distance Between Holes(mm): 20
High Light:

environmental test chamber

,

material testing equipment

IPX1 IPX2 Vertical Drop Rain Test Chamber



Standard



IEC60529 degree of protection provided by enclosures (IP Code) of the IPX1 and IPX2, IEC60884-1, IEC60335-1, IEC60598-1.



Application



It is used for the testing of IPX1 and IPX2.

Test sample



The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components,car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.).

Product information



This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing frequency of the spray water can be adjusted automatically.



Technical parameters





Inner box size (mm) 800×800×800(L×W×H)
Dripping rate (Water flow) 1+0.05 0mm/min or 3+0.05 0mm/min switchable
Rotating speed(rpm) 1 ~10 adjustable(IP 1.2 standard. Turntable can be tilted 15°).
Drip box(mm) 600X600MM
The distance between the drip box and the test sample 200MM
Needle hole(mm) φ0 .4
Distance between holes(mm) 20
Dripping rate (Water flow) 1MM or 3MM per minute, adjustable.
Testing time 1-999,999min(can be set)
Power Supply 220V 50Hz(can be customized )



After the test, the function test can be proceeded after normal temperature recovery of 24 H.

All stainless steel or powder coating, visible toughened glass window.

Equipped with a modest turntable (used to place the sample) with adjustable speed.

Control system: Independent research and development.



Structural material:

1. High- quality acid -proof stainless steel 304 inner liner.

2. Outer box is made of stainless steel 201.

3. The sample table is equipped with a circular turntable with adjustable speed.



Safety protection device:

  1. Power overload and short circuit protection
  2. Ground protection
  3. Water shortage protection
  4. Alarm ring prompt

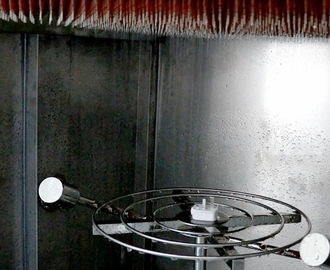

Picture for reference



IEC60884-1 IPX1 IPX2 Test Vertical Drop Rain Test Chamber Needle Hole Φ0.4mm 0
