| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third party calibration certificate(cost additional) |
| Model Number: | TRC-8 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | PIywood |
| Delivery Time: | 25 days |
| Supply Ability: | 15 sets a month |
| Channels: | 8 Channels | Display: | 5.6inch TFT LCD Digital Display |
|---|---|---|---|
| Resistance: | 0 – 400Ω | Thermal Resistance: | PT100, Cu50, BA1, BA2 |
| High Light: | iec testing equipment,iec tester |
||
IEC 60335-1 Temperature Recorder For Temperature Rising Test 8 Channels,0 – 400Ω,0– 10000Hz
product introduation
This instrument conforms to standard IEC 60335-1: Household and similar electrical appliances–Safety–Part 1: General requirements clause 11, used for temperature rising test of all kinds of electrical appliances, electrical products, such as microwave ovens, refrigerators heating test.
This instrument is used to display and record the sampling temperature data, can be displayed by data or curve. The sampled data can be printed on the recording paper through the micro printer, and can also be stored in the external storage medium (U disk).
Technical Parameters
1.Channels: 8 channels;
2.Display: 5.6inch TFT LCD digital display
3.Input method and thermocouple type
| Input method | Measurement range |
| DC current |
0–10mA 4–20mA |
| DC voltage |
0–10mA 4–20mA |
| Resistance | 0 – 400Ω |
| Thermocouple | S, B, K, T, E, J, R, N, F1, F2, WRE |
| Thermal resistance | PT100, Cu50, BA1, BA2 |
| Frequency signal | 0– 10000Hz |
4.Input range and measurable range
In the DC current, DC voltage, resistance, thermocouple, thermal resistance, frequency signal input, the input signal can be selected according to the input range. Corresponding to a variety of input range, have a measurable range

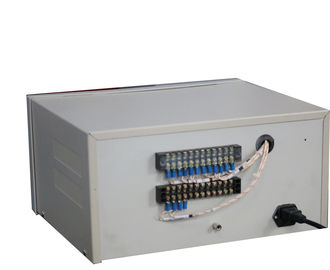

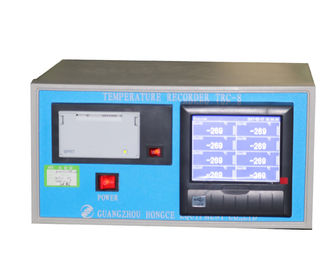

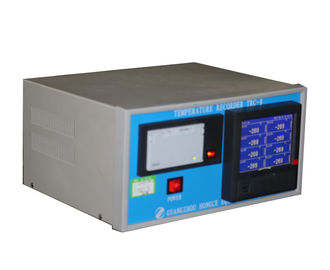

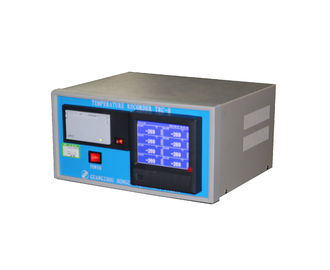

Pictures for reference:
