IEC60335-2-9 Clause 19.101 IEC Test Equipment Toaster Switch Endurance Tester

Brand Name:	HongCe
Model Number:	HJ0631
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	15 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Standard:

IEC60335-2-9

Output Power:

2KW

Interval Time:

0-999.9s, Adjustable

Test Times:

0-9999 Times, Adjustable

Cycle Times:

0-9999 Times, Adjustable

Current:

0-99.99A Displayable

Packaging Details:

Plywood

Highlight:

iec tester

laboratory test equipment

Product Description

IEC60335-2-9 Clause 19.101 IEC Test Equipment Toaster Switch Endurance Tester

Standard

IEC60335-2-9 clause 19.101of Household and similar electrical appliances – Safety: Part 2-9: Particular requirements for gills, toasters and similar portable cooking appliances.

Application

The device is used to check the power-on and off endurance that the toasters are operated at rated power supply and under normal operation.

Test sample

Toasters

Feature

The toaster was forced to be cooled to room temperature after each operation, and forced cooling action is performed once per every 6 bakes. This is repeated 500 times. It is with a infrared thermometer.

Parameters

Parameters / Model	HJ0631
Input Power	220V/ 50Hz
Test Cycles	1~999999
Cooling Fan Power	100W
Temperature Measuring Device	infrared thermometer (optional)
Drive Mode	Motor-driven
Equipped with vertical and horizontal keys, with spring to do the buffer to protect the sample keys
With the device which can detect the test sample’s current automatically; current detection upper and lower limits is adjustable, and with a light for status indication;
The baking and cooling actions can automatically repeat starting according preset parameters; with count and temperature discrimination functions; the baking cycles, test cycles, the interval time (0 ~ 99min) can be preset.
Dimensions and weight: L500mm × W620mm × H800mm, 100kg

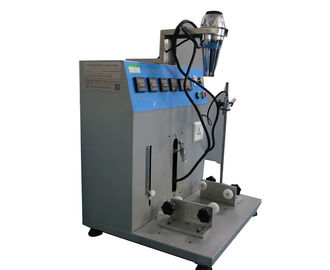

Picture for reference

IEC60335-2-9 Clause 19.101 IEC Test Equipment Toaster Switch Endurance Tester 0
