IEC60695-2-10 IEC Test Equipment Glow Wire Tester PLC Control For Fire Hazard Testing With Infrared Remote Control

Brand Name:	HongCe
Model Number:	GW-2
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Control Operation Mode:

PLC Control, 7 Inch Color Touch Screen Operation, With Infrared Remote Control

Remote Control:

Infrared Remote Control Outside The Cabinet Operates The Equipment When Door Are Closed

Flame Detect:

Flame Sensor Indicate Start/stop Burning

Test Data:

20 Test Data Stored In PLC

Packaging Details:

Plywood

Highlight:

iec testing equipment

iec tester

Product Description

IEC60695-2-10 IEC Test Equipment Glow Wire Tester PLC Control For Fire Hazard Testing With Infrared Remote Control

Standard

IEC60695-2-10, IEC60695-2-11, IEC60695-2-12, IEC60695-2-13, UL746A.

Application

This device simulates the thermal stress test of glowing component or heat source like overload resistance or ignition source which is caused in a short time. It is suitable for electric and electronic products, household appliances and other material to do fire hazard testing. It is also used in the No flame ignition source fire test to test initiation temperature and flammability index of related glowing filament.

Test sample

Electrical equipment and its components and parts, solid electrical insulating materials and other solid combustible materials.

Feature

Test principle: the glowing filament whose material and shape is required(Ni77/Cr20) is heated to the testing temperature of 550 ℃ ～ 960 ℃ for 1 min by using the glow wire tester with large current. Then using required pressure (0.95N) vertically burns the test sample for 30s. By observing whether the test sample and bedding object ignite or the burning time, the users can judge the ignition danger of electric and electronic products. It is used for the ignition test, ignition temperature (GWIT) test, flammability test and flammability index (GWFI) test of solid insulating material and other solid combustible material.

Parameters

ParametersModel	GW-2(Touch screen)
Working voltage	220V/50Hz
Control operation mode	PLC control, 7 inch color touch screen operation, with infrared remote control
Remote control	infrared remote control outside the cabinet operates the equipment when door are closed
Flame detect	Flame sensor indicate start/stop burning
Test data	20 test data stored in PLC
Glowing filament	Ф4mm ± 0.04mm (> 77 % Ni/20 ± 1 % Cr) special standard ring shape, horizontal standing
Specimen pressure on glowing filament	0.95N±0.1N
Maximum depth of heating	7mm ± 0.5mm
Specimen movement speed	10mm /s ~ 25mm /s
Temperature calibration	Calibration temperature:960°±10°C, the hot wire by electric heating
	Thermocouple: RS imported 1mm armour nickel-chromium/nickel/ nickel aluminum K-Thermocouple, temperature resistance 1100°
	Silver foil: purity 99.8%, size: 4mm², thickness:0.06mm
Tray	A layer of silk paper (12~30g/m³) is covered on the 10mm thick pine board, with a distance of 200±5mm below the test sample
Test chamber	>0.5 cube, sample distance from the inside of the box is greater than 100mm, black yogon background, background illuminance ≤ 20Lx,with exhaust fan
Testing time	30s±1s
Test procedure	The test sample is driven by the car and automatic run, the car will return automatically after glow-wire entered the test sample of 7mm
Lighting	Equip with lighting in the test chamber, with control
Dimension	11005501200mm, 140kg

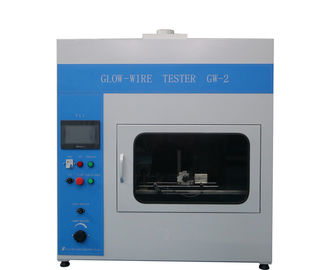

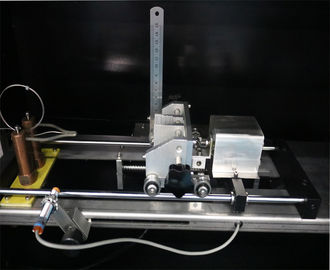

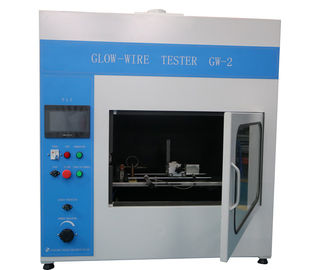

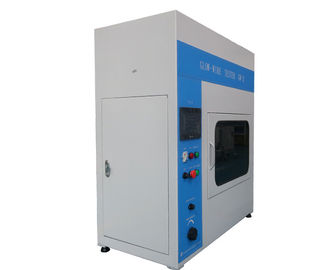

Picture for reference
