Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System

Brand Name:	HongCe
Model Number:	H-90-55
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	D/A, D/P, L/C, , T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third party calibration certificate(cost additional)

Highest Helium Output Pressure:

55bar

Helium Output Capacity:

120L/min & 240L/min As Standard Product

Helium Recovery Rate:

≥90%

PLC:

Omron

Packaging Details:

Plywood

Highlight:

helium leak detection

helium leak test equipment

Product Description

Manully Helium Sniffer Test for Products Assembly Line, Leak Detection System

The manual leak detction method is suitable to test leak of connection ports of assembled part, it is necessary to equipped with the helium charging and recovery system and helium leak detector with sniffer. The helium charging and recovery system is used to evacuate the test part, charge helium into the part and recover helium after testing. The operator finds the potential leak point with the sniffer of helium leak detector.

Test Concept

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 0

Evacuate the product.
Charge helium into the product till preset pressure.
Find the potential leak point with the helium sniffer.
Recover helum from the product.

Technical specification:

Highest helium output pressure:55bar
Helium output capacity:120L/min & 240L/min as standard product, also provide tailer-made products with different output pressure and capacity.
Helium recovery rate:≥90%

Main parts of system:

Vacuum pump: Leybold
Vacuum sensor: Inficon

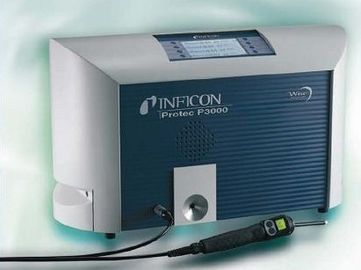

Helium leak detector: Inficon
Presure sensor: GE
Solenoid valve: Burkert

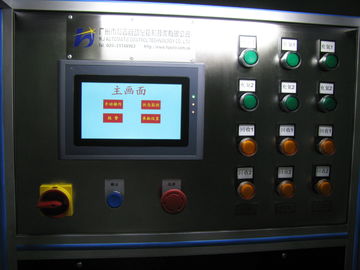

PLC: Omron

Patent Certification:

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 2

Company View:

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 3

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 4

International Coperation:

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 5

Manully Helium Sniffer Test for Products Assembly Line With Helium Charging And Recovery System 6
