Stainless Steel IEC Testing Equipment Circuit Breakers Tripping Characteristic Test Apparatus

Stainless Steel IEC Testing Equipment Circuit Breakers Tripping Characteristic Test Apparatus

Brand Name:	HongCe
Model Number:	HC-DTZ04
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	1 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration certificate(cost additional)

Hardware:

Buttons, Computer Host And Screen, Etc

International Standard:

IEC 60898-1

Equipment Material:

Stainless Steel

Test Item:

Circuit Breakers

Current Accuracy:

±0.1%

Guarantee Period:

1 Year

Packaging Details:

Plywood

Highlight:

Stainless Steel IEC Testing Equipment

Circuit Breakers IEC Testing Equipment

Circuit Breakers Tripping Characteristic Test Apparatus

Product Description

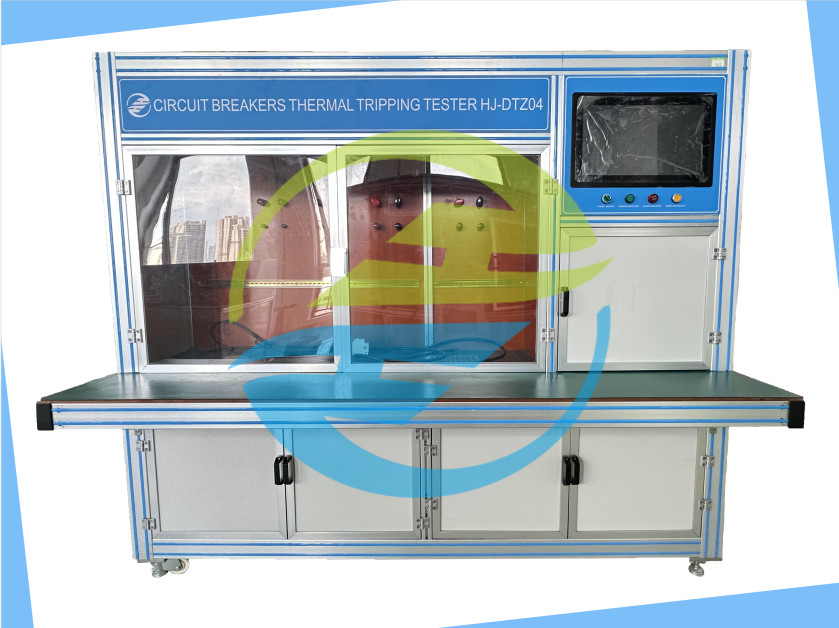

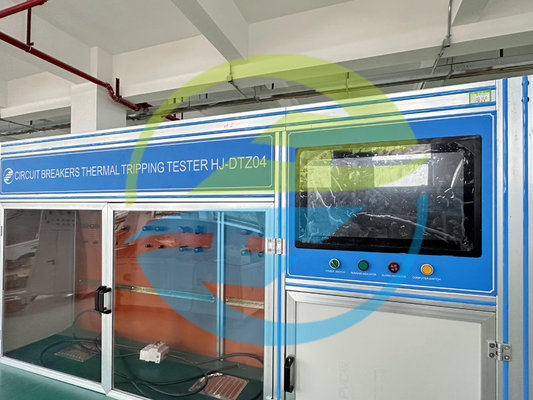

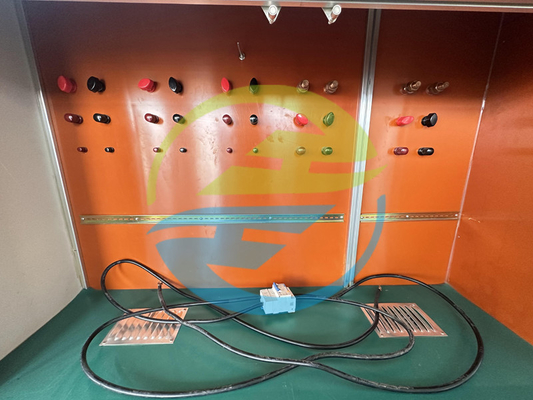

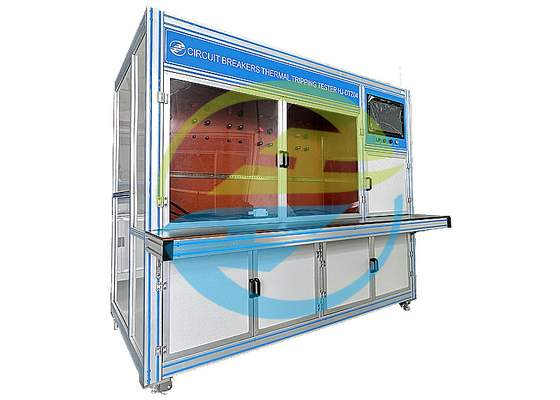

IEC 60898-1Testing Equipment Circuit-breakers Tripping Characteristic Test Apparatus

Product Introduction:

The circuit breaker thermal trip tester complies with IEC 60898-1.

It is a circuit breaker delay, standard (long delay) operating characteristics test stand.

Standard:

IEC 60898-1 Electrical accessories - Circuit-breakers for overcurrent protectionfor household and similar installations -Part 1: Circuit-breakers for a.c. operation clause 8.6 Automatic operation, and clause 9.10 Test of tripping characteristic;

Parameters:

Total capacity (KVA)	20KVA
Power input wire diameter (mm²)	≥16
Output current (A)	A total of 5 channels, respectively, as follows. 3 channels (the station can meet the current output 10-300A at the same time). 2 channels (the station can meet the current output 100-1000A at the same time).
Working power	Voltage: AC 220V±10%; three-phase four-wire Frequency: 50±1
Current display with constant current accuracy	≤±1% Adopt high precision electronic source
Current waveform distortion	≤3%
Insulation resistance	≥10MΩ
Timing resolution (S)	0.1
Timing range (S)	0.1—99999
Maximum allowable error of the system	±1%
Heater	Ensure the test chamber temperature up to 60℃, digital display
Result indication	Indicates the samples results on the touch screen, if accepted or rejected in the screen.
