IPX5 IPX6 Ingress Protection Test Equipment With Digital Flow Meter

Brand Name:	HongCe
Model Number:	HH0804
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	50 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate (Cost Additional)

Product Name:

Handheld Jet Nozzle Tester

Warranty:

1 Year

Material:

Stainless Steel

Application:

Water Spray Testing For IPX5 IPX6

The Nozzle Diameter:

Ф6.3mm/Ф12.5mm

Water Flow:

12.5±0.625L/min; 100±5 L/min

The Distance From Jet Nozzle To Enclosure:

2.5~3m

Testing Time:

Not Less Than 1min/m²(not Less Than 3 Mins)

Pressure Gauge:

0~0.25MPa

Standard:

IEC60529, IEC60884-1, IEC60335-1, IEC60598-1

Packaging Details:

Carton Box

Highlight:

IPX6 Ingress Protection Test Equipment

IPX5 Ingress Protection Test Equipment

Product Description

IEC60529 IPX5 IPX6 Ingress Protection Test Equipment Handheld Jet Nozzle Tester With Digital Flow Meter

Standard:IEC60529 degree of protection provided by enclosures (IP Code) of the IPX5 and IPX6, IEC60884-1, IEC60335-1, IEC60598-1.

Application:It is used for the testing of IPX5 and IPX6. Ingress Protection Test Equipment

Test sample:The test apparatus with water proof functions, such as electronic appliances, lamps, electrical cabinets, electrical components, car, motorcycle, electrical products (such as automotive instrument, all kinds of switches, micro motors, etc.)

Feature:With pressure gauge and digital flow meter, it can be used by replacing the nozzle, it also can match the complete set of waterproof system. Ingress Protection Test Equipment

Parameters:

Model	HH0804-1	HH0804-2
Item	IPX5	IPX6
The nozzle diameter	Ф6.3mm	Ф12.5mm
Water flow	12.5±0.625L/min, Flow meter is adjustable	100±5 L/min, Flow meter is adjustable
The distance from jet nozzle to enclosure	2.5~3m
Testing time	Not less than 1min/m²(not less than 3 mins)
Pressure gauge	0~0.25MPa
Site requirements	Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation
Water supply	Water flow rate ＞ 12.5L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment	Water flow rate ＞100L/min±5% clean water without inclusion. It can be achieved by the stainless steel water tank and pressurized equipment

Digital Flow Meter Parameters:

Name	Digital flow meter
Applicable Medium	Diesel, gasoline, kerosene, methanol, water
Material	Stainless steel turbine, aluminum alloy body surface
Connection Mode	Thread
Nominal Diameter	1 inch
Minimum Flow	10L/min
Maximum Flow	100L/min
Measurement Accuracy	±1%
Repeatability	±0.3%
Maximum Working Pressure	6BAR
Single Count Range	9999.9
Cumulative Count Range	999999
Weight	0.35KG

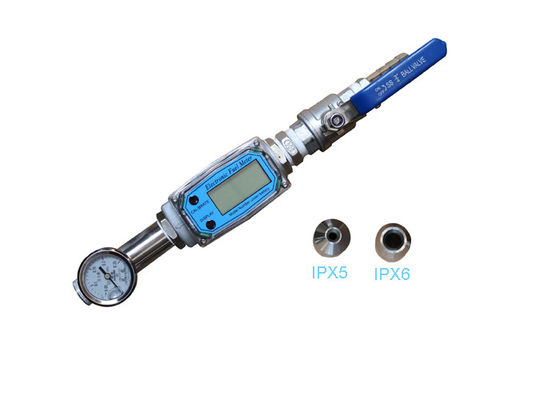

Picture view:

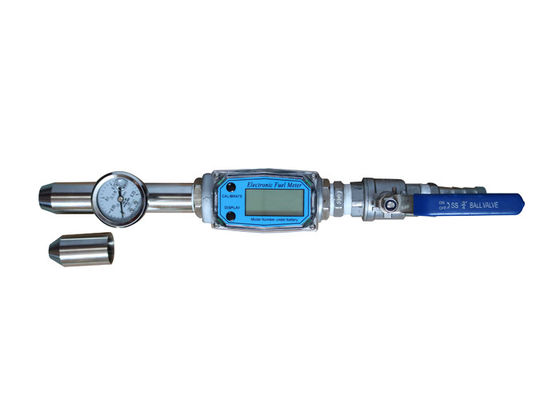

IPX5 IPX6 Ingress Protection Test Equipment With Digital Flow Meter 0

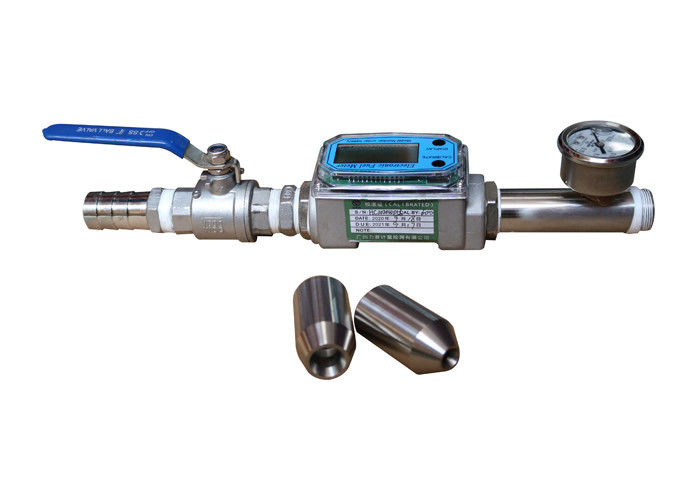

IPX5 IPX6 Ingress Protection Test Equipment With Digital Flow Meter 1
