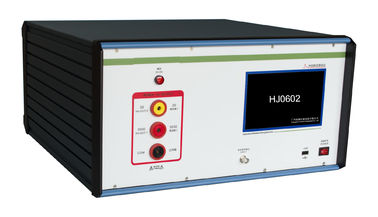

IEC60255-5 Test Equipment Impulse Voltage Test Generator Output Resistance 2Ω、500Ω±10％

Name: IEC60255-5 Test Equipment Impulse Voltage Test Generator Output Resistance 2Ω、500Ω±10％
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ0602
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HJ0602
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Capacitance:

0.8U

Output Polarity:

Positive, Negative, Positive And Negative Cycle

Impact Cycles:

1-9999

Impulse Wavefront Time:

1.2μs ±30％

Output Voltage:

12kV (Max) ±5％

Packaging Details:

Plywood

Highlight:

iec testing equipment

iec tester

Product Description

IEC60255-5 Test Equipment Impulse Voltage Test Generator

Parameters:

Output voltage	12kV (Max) ±5％
Impulse wavefront time: Impulse wavefront time: Impulse wavefront time:	1.2μs ±30％
Half value of after wave time	50μs ±20％
Capacitance	0.8U
Output polarity	Positive, negative, positive and negative cycle
Output resistance (optional)	2Ω,500Ω±10％	12Ω,500Ω±10％
Impact mode	Automatic or manual
Impact cycles	1-9999
Impact interval time	3-999s(3s of which is the inherent charging time of the device)
Power source	AC220±10％,50/60Hz
Dimension	470mm×260mm×500mm
Weight	30kg

Pulse generating unit equivalent circuit:

IEC60255-5 Test Equipment Impulse Voltage Test Generator Output Resistance 2Ω、500Ω±10％ 0

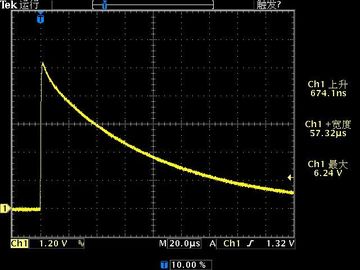

Output waveform definition Voltage wave

Leading edge time: T1=1.67T=1.2μs±30%

Half-peak time: T2=50μs±20%

IEC60255-5 Test Equipment Impulse Voltage Test Generator Output Resistance 2Ω、500Ω±10％ 1

Application:

Impulse Voltage Tester HJ0602 is manufactured in accordance with the IEC60255-5 "Insulation Test of Electrical Relays" promulgated by the International Electrotechnical Commission (IEC), measuring the insulation coordination of relays and protective devices, and performing impulse voltage tests.

Feature:

7-inch touch LCD interface, rich in functions, easy to operate, easy to upgrade software

Intelligent programmable high voltage power supply, built-in high voltage over voltage, over current and short circuit protection

Output intelligent detection, voltage error, no output warning
