Touch Current Measuring Circuit Figure 5 Network Of IEC 60990 For Leakage testing box

Brand Name:	HongCe
Model Number:	CT-1B
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	100SET/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Sstandard:

IEC60990figure 5

Package:

Carton Box

Weight:

2KG

Size:

160*90*90mm

Rs:

1500Ω

RB:

500Ω

Packaging Details:

Carton Box

Highlight:

iec testing equipment

iec tester

Product Description

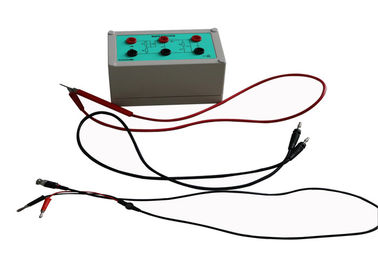

Touch Current Measuring Circuit Figure 5 Network Of IEC 60990 For Leakage

Product description: This test network conforms to the measuring network requirements of IEC60990, GB/T121132 touch current and the measurement method of protective conductor current, Figure 5 measuring network, touch screen weighted for letgo.

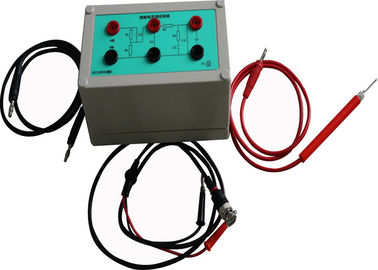

Touch Current Measuring Circuit Figure 5 Network Of IEC 60990 For Leakage testing box 0

Parameter:

Name	Value
Rs	1500Ω
RB	500Ω
Cs	0.22μF
R2	10000Ω
R3	20000Ω
C2	0.0062μF
C3	0.0091μF

Preparation:

Before testing, you need to prepare instruments as follow:
Oscilloscope x1

One or ten times the voltage probe x1
Power supply x1 (the test voltage or frequency that can be adjusted or changed to the required voltage or frequency)

Remark: HongCe also offers IEC 60990 fig. 3 and fig.4 touch current measuring mircuit networks , please consult us for more details.

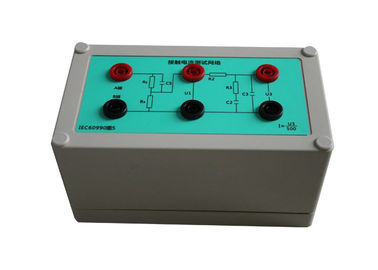

Touch Current Measuring Circuit Figure 5 Network Of IEC 60990 For Leakage testing box 1

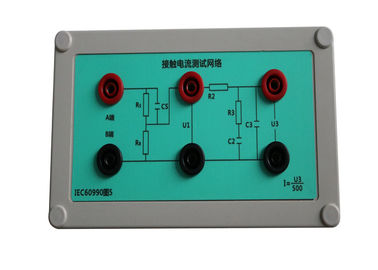

Touch Current Measuring Circuit Figure 5 Network Of IEC 60990 For Leakage testing box 2
