AC 230V Electrical Appliance Tester , IEC60335 - 1 Cord Anchorage Torque And Twist Tester

Brand Name:	HongCe
Model Number:	PST - 1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third Party Calibration ,CE(cost additional)

Standard:

IEC60335-1:25.15

Table:

Pull Force And Torque

Torque Time:

0.01S ～ 99 Hours 99 Min

Torque Arm:

20mm

Packaging Details:

Plywood

Highlight:

electrical appliance tester

portable appliance tester

Product Description

IEC60335 - 1 Cord Anchorage Torque And Twist Tester Electrical Appliance Tester

Product information:

The test appliance conforms to IEC60335-1:25.15. It is used to check whether the cord anchorage of the household appliances’ power cord is firm, can process the pull force and torque testing.

Parameters:

Power Supply	AC230V, 50HZ
Pull force weights	20N2,30N2( the pulling force of 30N,60N,80N,100N can be achieved)
Torque weights	5N1, 12.5N1, 17.5N*1(the torque force 0.1Nm,0.25Nm,0.35Nm can be achieved)
Test times	0~9999(selectable),25 times is by default
Pull force frequency	1 times/s
Torque arm	20mm
Torque time	0.01S～99 hours 99 min
Clamp	Combined clamp for both pull force and torque, matching by the bearing, can reduce the friction when processing torque test

Pull force and torque table:

Mass of appliance (kg)	Pull force (N)	Torque (Nm)
≤1	30	0.1
> 1 and ≤4	60	0.25
> 4	100	0.35

Operation Process:

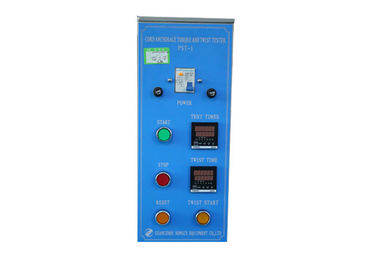

Press the “START” button, the pull force testing begins, after it reaches to the preset test times, the torque weight will be released automatically, and then the torque testing begins. After it reaches to the preset twist time, manually lift the torque weight, then the pull force and torque testing is completed.Then measure out the distance between the mark and the cord anchorage, the distance subtract 20mm is the pull out length after the test.

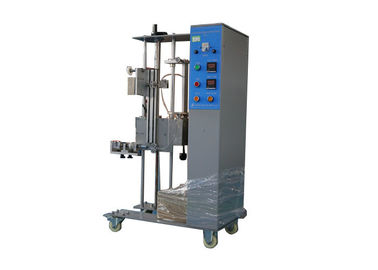

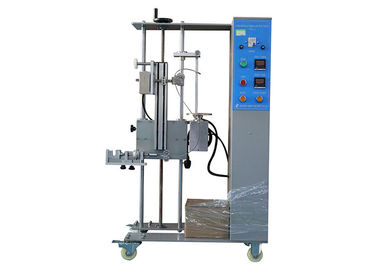

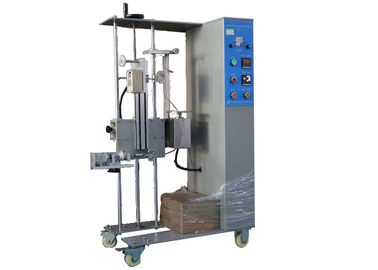

AC 230V Electrical Appliance Tester , IEC60335 - 1 Cord Anchorage Torque And Twist Tester 0
