IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min

IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min

  • IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min
  • IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min
  • IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min
IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate (Cost Additional)
Model Number: HJ0613A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Usage: Insert And Withdraw Endurance Test Warranty: 1 Year
Power Supply: 220V 50Hz Standard: IEC60335-2-14, IEC60335-2-15
Drive Method: Motor-driven Insert & Plug Stroke: 0-100mm
Insert & Plug Speed: 0-30 Times/min Test Cycles: 0-999999
High Light:

Kettle Insert And Withdraw Endurance Tester

,

IEC 60335-2-14 Withdraw Endurance Tester

,

10 Times / Min Electrical Appliance Tester

IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times/min



The appliance coupler of cordless blenders shall be constructed to withstand the stresses occurring during normal use.
Compliance is checked by the following test.
The two live pins of the blender are connected together and an external resistive load is connected in series with the supply. The external load is such that the current is 1,1 times rated current.
The blender is placed on its stand and withdrawn 10 000 times at a rate of approximately 10 times per minute. The test is continued for a further 10 000 times without current flowing.
If the connection contacts cannot be energized when making or breaking the connection, instead of the above sequence, the test is carried out 20 000 times without current.
After the test, the blender shall be suitable for further use and compliance with 8.1, 16.3, 27.5 and Clause 29 shall not be impaired.



Standard of Cordless Kettle Tester: IEC 60335-2-14 Clause 22.103, IEC60335-2-3 Clause 22.105, IEC60335 -2- 15 clause 22.103 and etc.

Application of Cordless Kettle Tester: Cordless electric kettles, cordless irons, cordless blenders, the contacts shall be constructed so that any electrical or mechanical failure that occurs during normal use shall not be dangerous and shall be verified by a plug-in test.

Test sample of Cordless Kettle Tester: Cordless electric kettles, cordless irons, cordless blenders

Feature of Cordless Kettle Tester: Make the two contacts of cordless electric kettles, cordless irons, cordless blenders to be Short-circuit, and supply 1.1 times of rated voltage to cordless electric kettle/ iron/ blender, then process the endurance test that the test sample’s body insert into and plug from the base at the speed of 10 times/min. And then process a certain times of insert & plug endurance test without load voltage. The test device can be connected to external load or has built-in load (optional), the test cycles can be preset (maximum 999999),the test system can record the test cycles and conduction cycles automatically during test, when the preset test cycles have been completed, the test device will stop testing automatically.



Parameters:

Parameters / Model HJ0613A
Input Power AC220V 50HZ
Control PLC control, touch screen operation
Station Single station
Drive Method motor-driven
Test Sample Cordless water kettle/iron/blender

Insert & Plug Stroke



0-100mm,can be preset on touch screen
Insert & Plug Speed 0-30 times/min, can be preset on touch screen
Test Cycles 0-999999,can be preset on touch screen
Conduction Cycles 0-999999, can be displayed
Mechanical action insert & plug action and kettle switch open and close movement
Load Built-in 0-250V,0-15A
Sample judgment Judge conduction according to the current
Dimensions and Weight 1000×500×1200mm,200kg

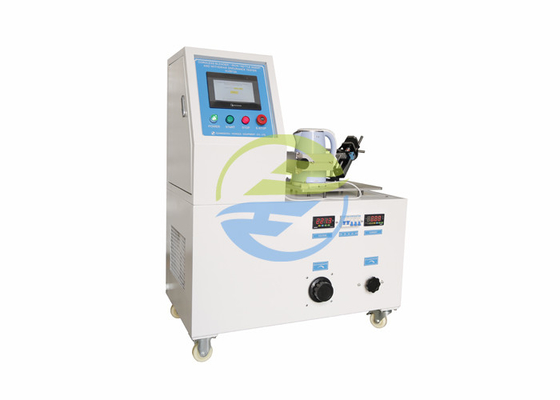

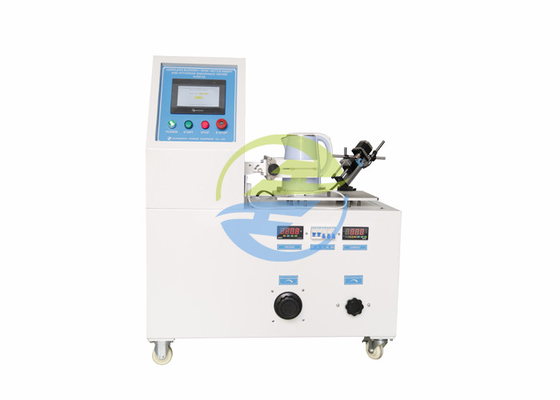

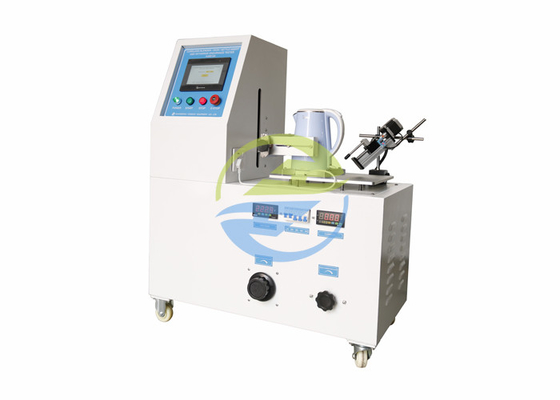

Picture for reference:

IEC60335-2-14 Cordless Kettle Insert And Withdraw Endurance Tester 10 Times / Min 0
