50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3

50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3
50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3 50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3 50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3 50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3

Large Image :  50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3

Product Details:

Place of Origin: China
Brand Name: HongCe
Certification: TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)
Model Number: EID-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 15 sets per month
Detailed Product Description
Standard: IEC60335-2-3 Clause 21.101 Model: EID-1
Input Power: Single AC220V 50HZ Working Speed: ≤ 20 R / Minute
Test Sample: Electric Iron , Control Device Of Blankets Dropping Height: 40mm
High Light:

electrical appliance tester

,

portable appliance tester

Electrical Iron Drop Test Machine EID-1 For Electrical Appliance IEC 60335 - 2 - 3



Application:



It is used to test the mechanical strength of the electric iron in the normal operating conditions and with rated input power, also used for checking the drop resistance performance of the blanket’s control device.




Standards:



Clause 21.101 of IEC 60335-2-3 Household and similar electrical appliances – Safety: Part 2-3: Particular requirements for electric ions, Clause 21.101 of IEC 60335-2-17. Household and similar electrical appliances – Safety: Part 2-17: Particular requirements for blankets, pads and similar flexible heating appliance.





Technical parameters:



Product Name Electrical Iron Drop Test Machine
Model No. EID-1
Standard

IEC60335-2-3 clause 21.101

Procedure 1 of IEC 60068-2-32

Power Supply AC220V, 50HZ
Drive method Motor
Station Single
Test Times 1~999999, adjustable
Working Speed ≤20 r/minute
Dropping Height 40mm, 100mm
Dimension  500mm*480mm*1220mm































Feature:



Hang up the electric iron blanket control device, and make the control device is horizontal to the bottom plate, then drop from a height of 40 mm and fall to a rigid support plate which is at least 15 mm thick, with mass at least 15kg, process the test 1000 cycles at the speed of no exceed 20 cycles per min. Ensure that the electric iron stays on the steel plate at least 15% of the total time of each cycle, and this is realized by the cam structure.



Pictures for reference:

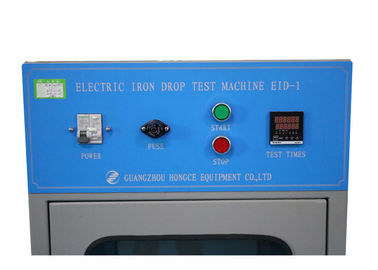

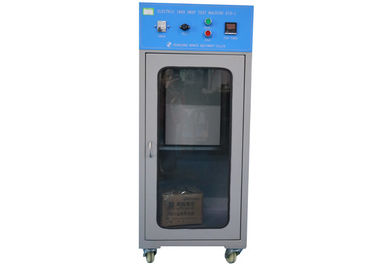

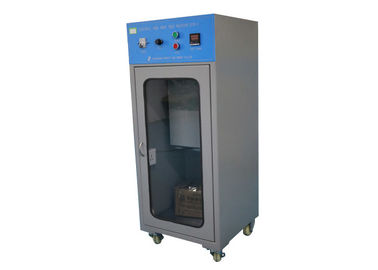

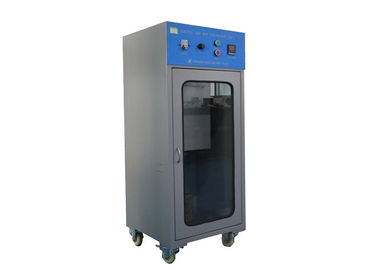

50HZ Electrical Appliance Tester , Electrical Iron Drop Test Machine IEC 60335 - 2 - 3 0
