Name: Supply Cord Flexing / Swivel Connections Portable Appliance Tester / Test Apparatus
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: PCF-1B
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	PCF-1B
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Standard:

IEC60335-1

Flexing Or Swivel Angle:

0-360°. Can Be Preset

Flexing Or Swivel Speed:

0~60 Rpm, Can Be Preset

Input Power:

220V, 60Hz

Packaging Details:

Plywood

Highlight:

electrical appliance tester

portable appliance tester

Product Description

Supply Cord Flexing & Swivel Connections Test Apparatus

PCF-1B

Product Introduction:

The power cord flexibility performance tester is special designed and manufactured according to IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23 and etc., it is used to check the power cord flexing (bending) resistance performance of the small household appliances (such as Coffee pot / electric iron), applicable for power cord flexing endurance tester of plugs and sockets, and also used to examine the temperature rise performance of the rotary joint of the hair & skin care apparatus after a continuous rotating operation.

The test device adopts to PLC electrical control, 7-inch color touch screen intelligent operation system; servo motor controlling the test angle, high precision digital instrument, high performance digital frequency conversion, precise speed regulation, six number memory timer, multifunctional combined clamps, center gauge of rotation, bending angle adjustable, 4kw output power, can also supply load current to test sample (1.25 times of test sample’s rated current). Test times (maximum of 999999 times), test speed, and test angles can be preset; it has electric current detection function. This device can meet the test requirements of most of small household electrical appliances, the applicable range is widely.

Technical Parameters:

Item Name	Parameters
Flexing or swivel angle	0-360°. Can be preset
Flexing or swivel speed	0~60 rpm, can be preset
Test times	0~999999 times, can be preset and displayed
Input Power	220V, 60Hz
Control	PLC programmable control
Drive	Servo motor
Operation	7” Touch screen intelligent operation
Max. output power	4KW
Output voltage	0~250V
Max. output current	20A
Max. carrying capacity	15kg
Test station	1 station
Specimen fixture	Universal fixtures for small house appliances, 1 set Universal fixtures for skin & hair care appliances, 1 set
Temperature Measuring	Hand-held infrared thermometer, -50°C~750°C
Load weights	1N1, 5N1,10N*1
Standards	IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23

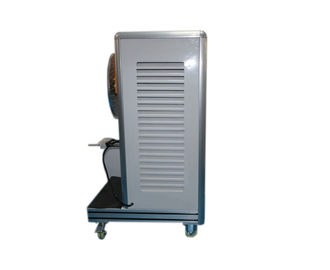

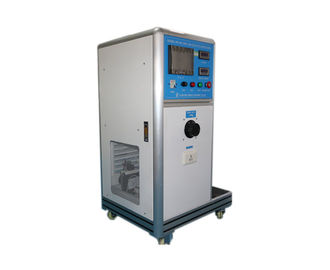

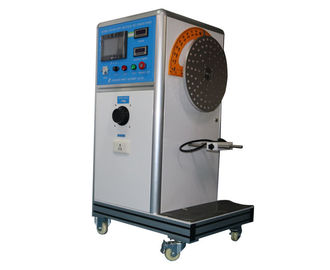

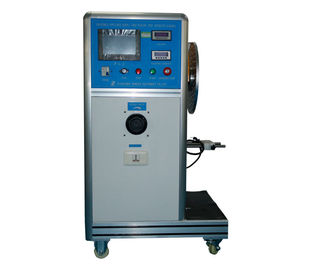

Picture for Reference:
