| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HF-02 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Standard: | UL498 | Power: | 300W |
|---|---|---|---|
| Counter: | 0~9999 Times, Adjustable | Timer: | 0~9999s, Adjustable |
| Highlight: | electrical appliance tester,portable appliance tester |
||
Wall Mounting Secureness Tester
HF-02
Products Introduction
The test device is used for wall mounting secureness test as per UL498 figure 143.2.
It is used to check when the socket installed on the test wall, then add force through the spring device, checking whether the installation of the socket is shift and test wall is damaged.
The test device is easy to be operated, the test times (up to 9999 times) can be preset, the test time is adjustable. When the display value of test times reaches the preset value, the test will stop automatically.

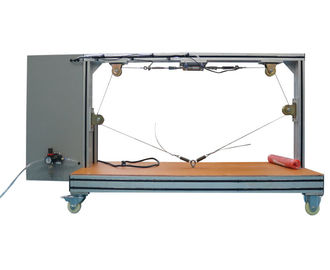

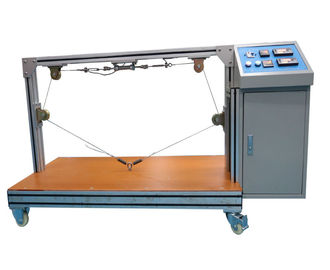

Picture for reference:
Technical Parameters:
| Parameters Name | Parameter Data |
| Input supply | AC120V±10%, 60Hz |
| Power | 300W |
| Test station | Single |
| Moving method | Bidirectional cylinder |
| Counter | 0~9999 times, adjustable |
| Timer | 0~999.9s adjustable |
| Force | 22lbf (97.8 N), displayed and controlled by the force sensor |
| Note: the test wall is prepared by the user. | |
