Assembly Security Tester UL498 Check Portable Appliance Testing Equipment

Name: Assembly Security Tester UL498 Check Portable Appliance Testing Equipment
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HF-01
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HF-01
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Standard:

UL498

Power:

500W

Counter:

0~9999 Times, Adjustable

Timer:

0~9999s, Adjustable

Packaging Details:

Plywood

Highlight:

portable appliance testing equipment

portable appliance tester

Product Description

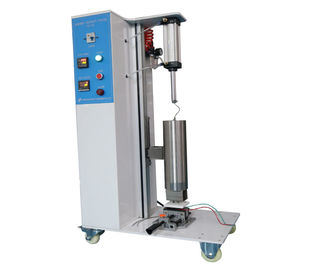

Assembly Security Tester

HF-01

Products Introduction:

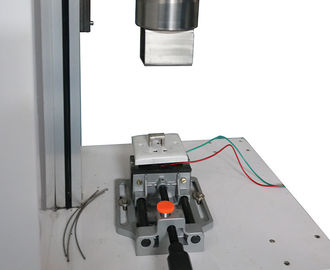

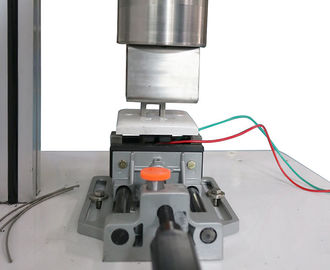

This test apparatus is designed and manufactured according to the standard requirement of UL498 Cl. 118 assembly security test figure 118.1~118.5. It is used To Check Assembly Security Of The Flush Receptacle Having 5-15r, 5-20r, 6-15r, 6-20r Configuration.

The test device is easy to be operated, the test times (up to 9999 times) can be preset, the test speed is adjustable. When the display value of test times reaches the preset value, the test will stop automatically.

Technical Parameters:

Parameters Name	Parameter Data	Remark
Input supply	AC120V±10%, 60Hz
Power	500W
Test station	Single
Moving method	Pneumatic + weight
Counter	0~9999 times, adjustable
Timer	0~9999s, adjustable
Weight	220N one piece

Overview of Control System Functions:

Connect to compressed air:

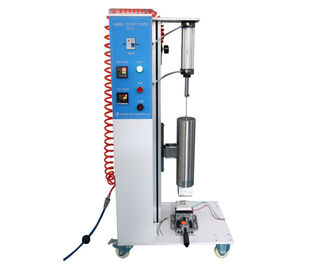

Connect the compressed air to the inlet of the pressure regulator, shown as below picture:

Assembly Security Tester UL498 Check Portable Appliance Testing Equipment 0

Drainage of gas line:

Compressed air contains moisture, the moisture will be turned into water and accumulated in the pressure regulator cup after a period of time, operator can press the waterproof valve of the cups to drain out the water:

Assembly Security Tester UL498 Check Portable Appliance Testing Equipment 1

Functions of the control panel:

Assembly Security Tester UL498 Check Portable Appliance Testing Equipment 2
