| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HC9905 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Plywood |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10 set per week |
| Standard: | IEC 60884-1 | Input Supply: | AC120V±10%, 60Hz |
|---|---|---|---|
| Deflecting Angle: | 0-360° | Deflecting Force: | 0.25N, 0.5N, 1.0N |
| High Light: | portable appliance testing equipment,portable appliance tester |
||
Screwless Terminals Deflecting Tester +Voltage Drop Tester
HC9905
Technical Parameters:
| Parameters Name | Parameter Data |
| Input supply | AC120V±10%, 60Hz |
| Deflecting angle | 0-360° |
| Deflecting direction | In any of the 12 directions differing from each other by 30°±3° |
| Deflecting force | 0.25N, 0.5N, 1.0N |
| Force applied direction | Perpendicular to the undeflected conductor |
| Test Current | 100A |
Products Introduction
This device complies with IEC 60884-1 clause 12.3.12 and figure 12, it is used to use to check whether the screwless terminals connected rigid solid conductor remains clamped, even when it has been deflected during normal installation. Deflecting the conductor and measuring the voltage drop, to check the screwless terminal clamping capacity and contacting performance.
The device is easy for operating, the load current is 0-30A stepless adjustable,,the sample fixture is manufactured according to the standard requirements.

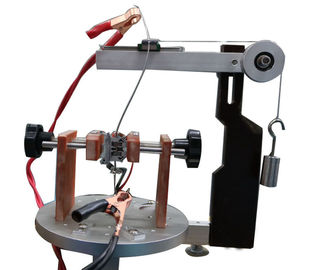

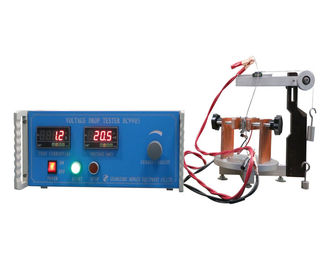

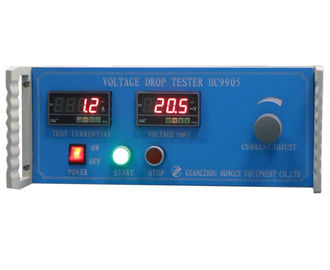

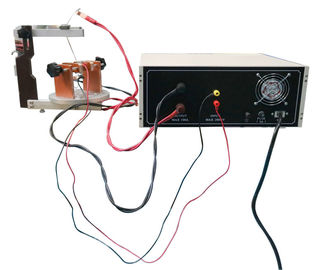

Picture for reference:
