Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa

Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa

  • Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa
  • Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa
  • Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa
  • Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa
Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: HJ0607
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Plywood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Solution: Fuchsin & Methylated Spirit Pressure: Not Less Than 15Mpa
Test Sample: Ceramic Material
High Light:

electrical appliance tester

,

portable appliance tester

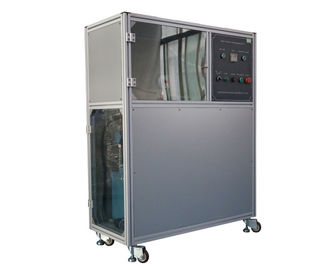

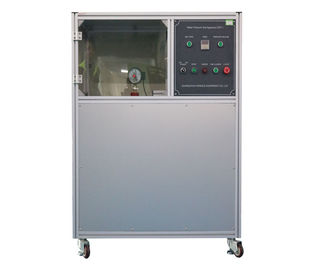

Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa



This test apparatus is design and manufactured according to standard IEC 60335-1 clause 22.32, GB 4706.1 clause 22.32. It is use to determine if ceramic material is tightly sintered, consists of two parts: test container and pressure boosting device magenta.



The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.



The pieces are removed from the solution, rinsed, dried and broken into smaller pieces.



The freshly broken surfaces are examined and shall not show any trace of dye visible to the naked eye.



Technical Parameters:



Item Name Parameters
Power supply AC 230V 50Hz
Power 3KW
Test pressure 0.5~20MPa±0.5MPa
Test completion reminder time 3min
Test time 1-99hour

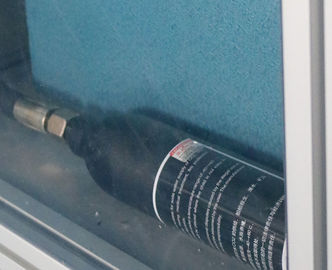

Container bottle 450ml
Pressure relief way Automatic relief
Dimension (LXWXH) 1200mmX450mmX1500mm


Test Steps:

  1. connect to proper power supply, turn power switch on;
  2. press【BOLT PARA】button, make the motor rotate, and the pressure relief bolt alignment to pressure hold handle hole. Then insert the bolt into handle hole;Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa 0

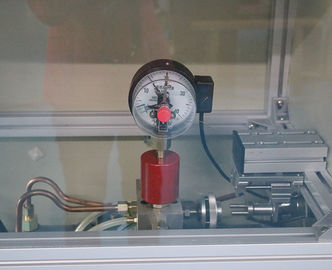

  3. adjust the test pressure, rotate the red handle, pull the red electric contact pointer, so that the pointer stopped in the test pressure scale.Ceramic Material Fuchsin Methylated Spirit Solution Pressure Test Equipment 15MPa 1
  4. Set test time
  5. Press【START】to start up test, when the pressure is reached, the black pressure indicator and the red pointer coincide, began to maintain pressure, when test time reach buzzer alarm, automatic pressure relief.
  6. Test completed, turn power off, open the container bottom and inspect the test sample
