Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus

Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus

  • Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
  • Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
  • Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
  • Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
  • Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
Ceramic Material Tightness Fuchsine Solution Pressure Test Apparatus
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0607
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Ceramic Material Standard: IEC 60335-1
Test: Pressure Test Test Solution: Fuchsine And Methylated Spirit Solution
Test Pressure: Not Less Than 15 MPa Test Time: 1~999 Hour
Containor Volume: 450 Ml Dimension: L*W*H=1200mmX450mmX1500mm
High Light:

portable appliance testing equipment

,

portable appliance tester

Ceramic Material Fuchsine And Methylated Spirit Pressure Test Apparatus HJ0607





Description:

This device is used to check whether the ceramic material is tightly sintered.

Confirm to Clause 22.32 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements. Supplementary insulation and reinforced insulation shall be constructed or protected so that the deposition of pollution resulting from wear of parts within the appliance does not reduce clearances or creepage distances below the values specified in Clause 29.



Technical parameters:

Test object Ceramic materials
Reference standard IEC 60335-1
Test Pressure test
Power supply 380V AC 50HZ
Power 3KW
Test pressure 0.5-20MPa±0.5MPa
Test time 0~999 hour
Reminder Time of Test Completion 3 min
Container Volume 450ml
Dimensions L*W*H=1200mmX450mmX1500mm
Test solution a solution containing 1g of fuchsine in each 100 g of methylated spirit
Result judgement

After pressure test

The pieces are removed from the solution, rinsed, dried and broken into smaller pieces.

The freshly broken surfaces are examined and shall not show any trace of dye visible to the naked eye.



Test sample: ceramic material



Feature:

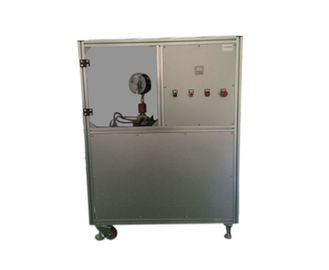

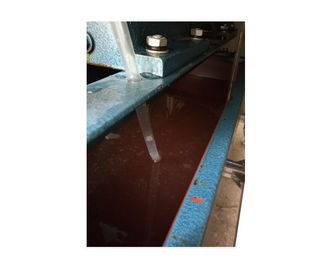

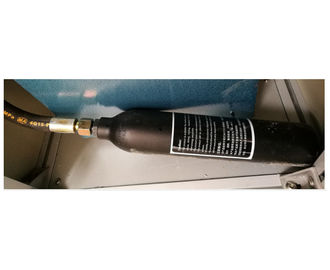

The device consists of two parts: Fuchsine and Methylated Spirit test chamber, pressure boosting device.

The ceramic material is broken into pieces that are immersed in a solution containing 1 g of fuchsine in each 100 g of methylated spirit. The solution is maintained at a pressure not less than 15 MPa for a period so that the product of the test duration in hours and the test pressure in megapascals is approximately 180.
