2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material

2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material

  • 2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material
  • 2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material
  • 2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material
2.1MPa Oxygen Bomb / Air Bomb Aging Test Chmaber with Rubber Insulation Material
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third part calibration certificate(cost additional)
Model Number: HJ0606
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 20 working days
Payment Terms: T/T
Supply Ability: 20 set per month
Contact Now
Detailed Product Description
Test Object: Rubber Parts Standard: IEC 60335-1
Test: Aging Test Test Oxygen: Purity Not Less Than 97%
Test Pressure: 2.1 MPa±0.07 MPa Test Time: 96 Hour
Chamber Volume: 4000cm3 Internal Dimension: Diameter 123 × Height 337mm
High Light:

electrical appliance tester

,

portable appliance tester

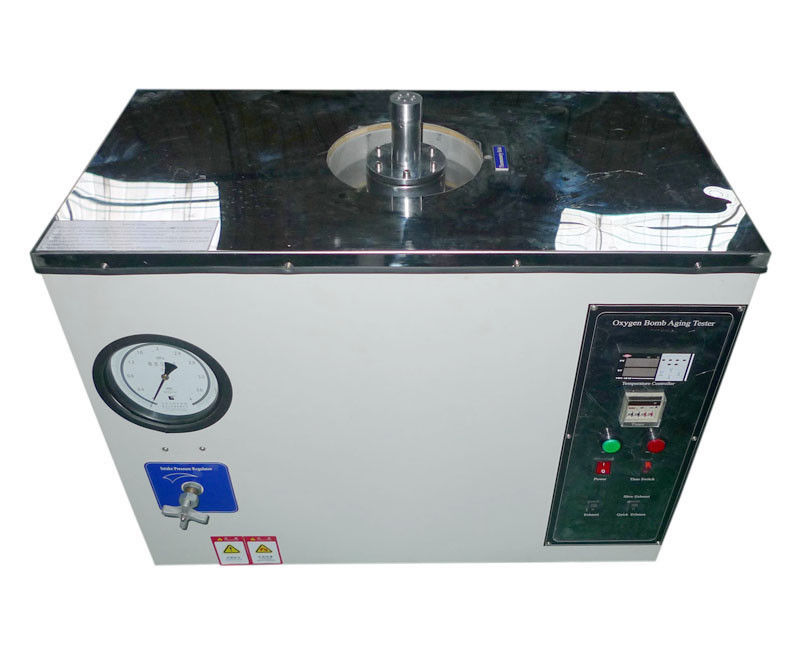

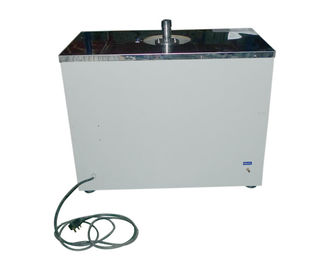

Oxygen Bomb (Air Bomb) Aging Tester HJ0606





Description:

This device is used to process the aging test for the electric wire, the insulation layer and sheath of the rubber( plastic, artificial leather) as well as other high polymer materials under the action of required pressure and temperature in the medium of oxygen and compressed air.

Confirm to Clause 22.32 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements, IEC 60811-1-1 sub clause 9.1 and IEC 60811-1-2 sub clause 8.3 and etc.



Technical parameters:

Test object Rubber insulation parts of household appliance
Reference standard IEC 60335-1
Test Aging test
Power supply 220V AC 50HZ
Maximum Operating Pressure 2.5MPa
Secure Burst Pressure 2.7~3.3MP
Temperature-controlled range room temperature~200℃
Outer Chamber Dimensions 560mm × 420mm × 670mm
Inside Chamber Dimensions Diameter 123 × Height 337mm
Inside Chamber Volume 4000cm3
Heating Power 2.4KW
Temperature Alarm 0~200℃ Adjustable
Temperature deviation ±0.5℃
Temperature Control Intelligent control
Temperature Display Thermometer display
Material Inside chamber is made of stainless steel and outer chamber is made of electrostatic spraying steel plate



Test sample: Wires, cables, rubber (plastic, leather) insulation layer and sheath, as well as other polymer materials.



Feature:

The device adopts inside and outside dual-chamber structure, the samples are suspended in an oxygen tube, filling with oxygen purity ≥ 97%, make the pressure up to 2.1 ± 0.07 MPa and maintain the temperature at 70 ° ± 1 ° C, then process aging test for 96 hours in this state.
