We provide you with industry leading test equipment,
advanced online system and solutions–anywhere in the world.
|Place of Origin:||China|
|Certification:||Third part calibration certificate(cost additional)|
|Minimum Order Quantity:||1 set|
|Delivery Time:||20 working days|
|Supply Ability:||20 set per month|
|Test Object:||Household And Similar Electrical Appliances||Standard:||IEC 60335-1|
|Test:||Winding Resistance Temperature Rise Measurement||Measuring Range:||0.5~20~200~2000Ω|
|Temperature Rise:||Calculated According To The Formula||Thermal Resistance Response Time:||30s|
|Test Time:||Max. 99h59min59s||Power Supply:||220V AC 50/60Hz|
electrical appliance tester,
portable appliance tester

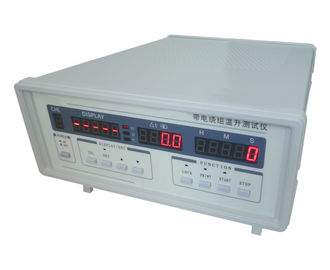

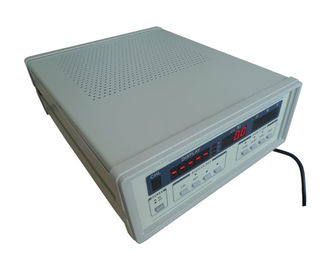

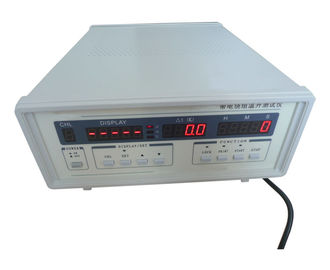

Hot Winding Resistance Meter RXDC-3
This device is Used for the winding temperature measurement of various household appliances and completed products(such as air conditioners, refrigerators, electric fans, washing machines, etc.)and other small power motor and transformers.
Confirm to IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.
|Test object||Household and similar electrical appliances|
|Reference standard||IEC 60335-1|
|Test||Winding Resistance temperature rise measurement|
|Measurement Accuracy||cold state ±0·1%READ＋0·1%FS, thermal state ±0·15%READ＋0·15%FS|
|Ambient temperature||Measuring range 0~50℃, Measurement Accuracy ± 0·5℃|
|Temperature Rise||Calculated according to the formula|
|Thermal resistance response time||<30 seconds|
|Test time||Maximum 99 hours 59 minutes 59 seconds, Accuracy ±0·1%|
|Winding temperature coefficient||can be set to 0 ~ 999.9, all set parameters latched when power failure|
|Port||Instrument standard equipped serial port, can communicate with the computer serial|
|Testing software content||Record the temperature change data, display temperature curves, check printing|
|Optional||mini-printer, can print multi-channel temperature data timing, the print measurement time interval can be set by the user|
|Power supply||AC220V ±10%, 50Hz /60Hz, Total power consumption＜15W|
|Operating environment||Operating Temperature 25℃±15℃; Humidity 60%±30%|
|Dimensions||307mm(W)×395mm(L)×140mm(H),Total weight about 10Kg|
Test sample: various household appliances and completed products, such as air conditioners, refrigerators, electric fans, washing machines, etc.
Feature: Single channel or dual channel can be selected.
Standard equipped 25-pin parallel printer port, you can connect the printer directly to print test data; multi-channel temperature data can be regularly print, the measurement time interval can be set by the user.
