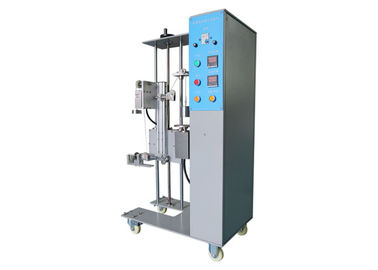

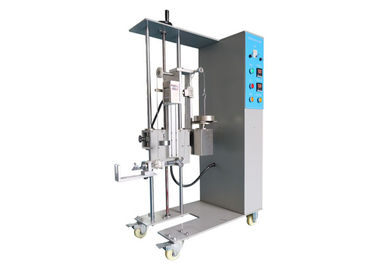

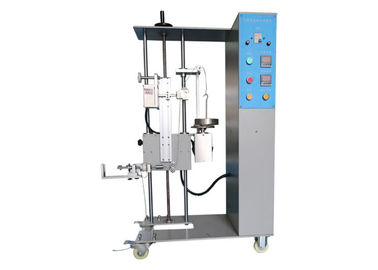

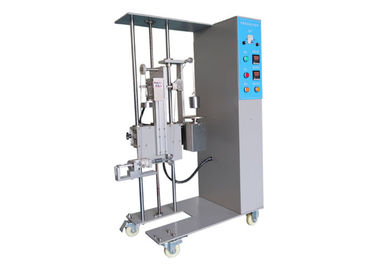

Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances

Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances

  • Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances
  • Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances
  • Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances
  • Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances
Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HJ0609
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export packing
Delivery Time: 30 days
Payment Terms: T/T, PayPal, D/A, Western Union, MoneyGram, L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Pull Force Weight: 20N*2,30N*2 Torque Weight: 5N*1, 12.5N*1, 17.5N*1
Pull Speed: 1 Cycles/s Torque Time: 0.01S~99 Hour 59 Min 59 S
High Light:

portable appliance testing equipment

,

portable appliance tester

Cord Anchorage Strain And Twisting Test Equipment For Testing Household Appliances



Standard: Clause 25.15 of IEC 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements and etc.



Application: It is used to check the cord anchorage of the appliances provided with a supply cord, and appliances intended to be permanently connected to fixed wiring by a flexible cord, shall relieve conductors from strain, including twisting, at the terminals and protect the insulation of the conductors from abrasion.



Test sample: Household appliances, medical equipment, lamps, plugs and sockets and etc.



Feature: The test equipment adopts Z-word structure, can be used to test the clamping terminal firmness of the refrigerators, washing machines and other large household appliances’ power cords.

The test method is that a mark is made on the cord at a distance of approximately 20 mm from the cord anchorage or other suitable point. Then the cord is then pulled, without jerking, for 1 s in the most unfavourable direction with the force specified. The test is carried out 25 times. The cord, unless on an automatic cord reel, is then subjected to a torque that is applied for 1 min. After above test, the cord shall not be longitudinally displaced by more than 2 mm.

Parameters:

Parameters / ModelJ0609
Input PowerAC220V 50HZ
Pull Force Weight20N*2,30N*2 (the pulling force of 30N,60N,80N,100N can be achieved);
Torque Weight5N*1, 12.5N*1, 17.5N*1 and a torque arm (0.1Nm,0.25Nm,0.35Nm can be acheived);
Pull Test Cycles0~999999, can be preset, default 25
Pull Speed1 cycles/s
Torque Time0.01S~99 hour 59 min 59 s
Fixture

Tension fixture and torque fixture are combined, which

coordinated in the middle through the bearing, reduce the friction during torque test.

StructureThe device adopts motor cam mandrel mechanism, Z-word connection, so that the fixture can hold the power cord which is on the appliance and 150mm above from the ground.


Table – Pull force and torque.


Mass of appliance (kg)Pull force (N)Torque (Nm)Combination of Pull Force Weight and Torque Weight
≤1300.130N+5N
> 1 and ≤4600.252*30N+12.5N
> 41000.352*30N +2*20N+17.5N


Cord Anchorage Electrical Appliance Tester Strain And Twisting Device For Testing Household Appliances 0
