| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HJ0611 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Motorized Cleaning Heads Drop Device, Electric Iron | Standard: | IEC 60335-1 |
|---|---|---|---|
| Test: | Drop Test | Drive Mode: | Electric Moto Driven |
| Test Cycles: | 1~999999, Adjustable | Working Speed: | ≤20 R/minute |
| Dropping Height: | 100mm | Dropping Face: | Right Side, Left Side, Front Face, Cleaning Surface |
| High Light: | electrical appliance tester,portable appliance testing equipment |
||

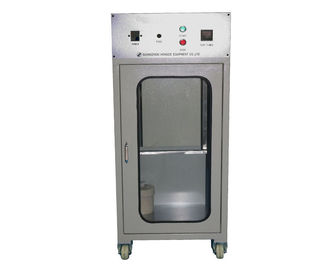

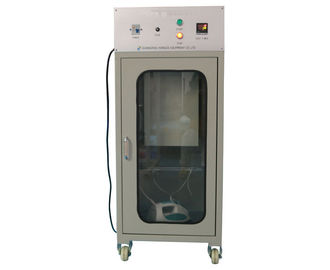

Motorized Cleaning Heads Drop Device Test Equipment HJ0611
Description:
This device is used to test the mechanical strength of the motorized cleaning heads of water-suction cleaning appliances.
According to the standard Clause 15.101 of IEC 60335-2-2 Household and similar electrical appliances – Safety: Part 2-3: Particular requirements for Vacuum cleaners and water-suction cleaning appliances.
Test sample: Motorized cleaning heads of water-suction cleaning appliances
Feature:
Hang up the motorized cleaning heads of water-suction cleaning appliances, and make the control device is horizontal to the bottom plate, then drop from a height of 100 mm and fall to a rigid support plate which is at least 15 mm thick, with mass at least 15kg, process the test 4000 cycles at the speed of no exceed 20 cycles per min. It is dropped
--1000 times on its right side;
--1000 times on its left side;
--1000 times on its front face;
--1000 times on its cleaning surface;
Technical parameters:
| Power supply | AC 220V 50Hz |
| Drive Mode | Electric moto driven, the drop action is achieved through the cam mechanism. |
| Test Cycles | 1~999999, adjustable |
| Working Speed | ≤20 r/minute |
| Dropping Height | 100mm |
| Dropping Face | right side, left side, front face, cleaning surface, process 1000 cycles for each side |
| Support Steel Plate | Thickness >15mm, weight >15kg |
| Dimension & Weight | 600*600*1250mm,120kg |
