Place of Origin: | China |
Brand Name: | HongCe |
Certification: | Third part calibration certificate(cost additional) |
Model Number: | HDX1314 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiatable |
Packaging Details: | plywood |
Delivery Time: | 20 working days |
Payment Terms: | T/T |
Supply Ability: | 20 set per month |
Test Object: | Cable, Wire, Cord | Standard: | UL817 |
---|---|---|---|
Test: | Abrupt Pull Test | Stations: | 6 |
Power Supply: | AC 220V 50Hz | Load Current: | 0~40A , Arbitrary Adjustable |
Load Voltage: | 4~12V | Test Times: | 1~9999 Times, Can Be Preset |
Highlight: | material testing equipment,power cable tester |

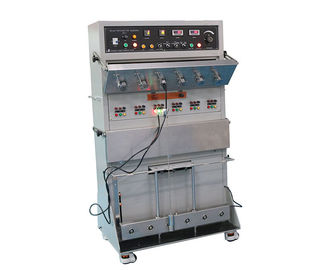

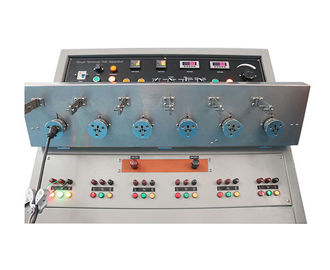

Abrupt Pull Test Apparatus HDX1314
Description:
This device is used for the resistance abrupt pull test of Plug of plug power line, torsion test, load test and grounding current test.
According to the standard UL817 clause 96.4-96.5 Flexing test, clause 99.1-99.2 Abrupt Pull Test, clause 100.1-100.3 Jacket retention test.
Test sample: Plug power line.
Feature: Using automatic mode test, it will automatic shutdown when reach to the setting number if test times or setting time.
Technical parameters:
Power supply | AC 220V 50Hz |
Load current | 0~40A , Arbitrary adjustable |
Load voltage | 4~12V |
Working station | 6 stations |
Test times | 1~9999 times, can be preset |
Test time | 0.1~999.9S |
Load weight | 2.5 pound(lb) , 3 pound(lb) , 15 pound(lb) 6 pcs per each |
Ambient temperature | 0~40℃ |
Ambient humidity | less than 85%Rh |
Reference standard |
UL817 clause 96.4-96.5 Flexing test, clause 99.1-99.2 Abrupt Pull Test, clause 100.1-100.3 Jacket retention test |
