Low temperature test chamber Accurate simulation - 70℃ to 150℃ environment Professional cable testing equipment

Name: Low temperature test chamber Accurate simulation - 70℃ to 150℃ environment Professional cable testing equipment
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: DW-1
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	DW-1
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T, Western Union
Supply Ability:	15 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Cooling Time:

≤50 Minutes(empty Case)

Cooling Rate:

0.70C～1.00C

Using Temperature Range:

-10℃ ～ -70℃

Temperature Uniformity:

≤2℃

Packaging Details:

Plywood

Product Description

Low temperature test chamber Accurate simulation - 70℃ to 150℃ environment Professional cable testing equipment

Product Introduction:

The safe operation of each cable has its "stress resistance" to extreme environments. The DW-1 low temperature test chamber, as the source factory direct supply equipment we have devoted ourselves to research and development, is specially designed for cable testing.

Product information:

The low temperature test chamber conforms to IEC60540 standard which is applicable for the low temperature test of the electric wire and electrical accessories.

Technical parameters:

Using temperature range	-10℃ ～ -70℃
Temperature uniformity	≤2℃
Cooling time	≤50 minutes(empty case)
Cooling rate	0.70C～1.00C
External dimension	1230X680X930MM
Internal dimension	150 litre
Power supply	220V±5%,50Hz
Input power	2KW,auxiliary heating:750W
Two stage refrigeration,Smart P.I.D for controlling temperature.

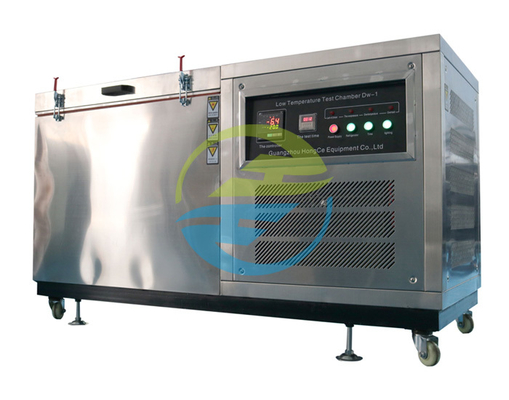

Product photos:

Low temperature test chamber Accurate simulation - 70℃ to 150℃ environment Professional cable testing equipment 0

Product use:
Insulation and mechanical properties test of power cables in low temperature environment;
Transmission performance stability test of communication cables and optical fiber cables in extremely low temperature;
Reliability verification of low temperature resistance of automotive cables and rail transit cables;
Service life evaluation of building cables in cold areas;
Low temperature embrittlement test of cable raw materials (insulation layer, sheath).

About us :

Guangzhou Hongce Equipment Co., Ltd. is a source manufacturer of reliability testing equipment rooted in China and serving the world. For 15 years, we have focused on the research and development of environmental simulation test equipment, and our products include high and low temperature chambers, temperature and humidity cycle chambers, salt spray testers and customized test systems. The company has passed the ISO 9001:2015 quality management system certification, maintains technical cooperation with the world's top laboratories (such as SGS, TÜV), and is committed to providing intelligent testing solutions that comply with IEC, UL, and GB standards for industries such as cables, new energy, and automotive electronics. Hongce equipment has been used in 500+ customer laboratories in various regions around the world, and is your trusted "quality partner".
