| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HDX1309 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Cable | Standard: | IEC60811-1-4 |
|---|---|---|---|
| Test: | Low Temperature | Volume: | 600*500*500mm |
| Power: | 3.5KW | Inner Material: | SUS 304 |
| Outer Material: | SUS 304 | Working Current: | 15A |
| Temperature Range: | ~-40 Degress Celsius | Cooling Rate: | About 45min From Ambient To -40 |
| High Light: | material testing equipment,electric wire tester |
||

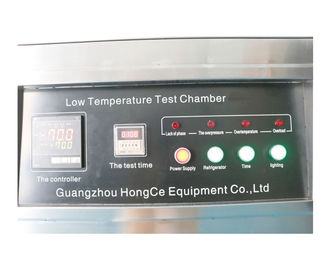

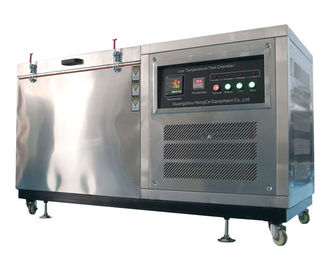

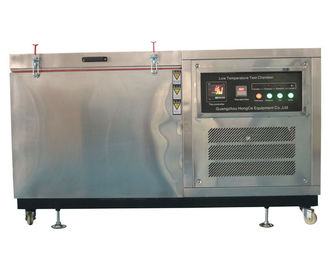

Low-Temperature Test Chamber HDX1309
Technical parameters:
| Inner test size | L600 × H500 × W500mm |
| Outer chamber size | L1700 × H950 × W850mm |
| Inner chamber material | stainless steel plate(SUS#304) |
| Outer chamber material | stainless steel plate(SUS#304) |
| Heat preservation material | low temperature tank: high density PU foam |
| low temperature tank: high density PU foam | 3.5KW |
| Supply voltage | AC220V 50HZ |
| Working current | 15A |
| Temperature range | room temperature～-40℃ |
| Cooling time | room temperature～-40℃ about 45 minutes to reach |
| Weight | about 200KG |
Description:
This device is intended to provide a low temperature test environment, Suitable for low temperature test of products such as electric wire and cable, electrical accessories, etc..
According to the standard IEC60811-1-4, common test methods for insulating and sheathing materials of electric and optical cables-part 1-4:Methods for general application-Test at low temperature.
Test sample: wire and cable, material and product to be used in low temperature environment
Feature: The low temperature test chamber mainly provides the low temperature environment of (0℃~-40℃) , to open the seal cover plate on the low temperature chamber, can clearly see the inside of the low temperature chamber through the transparent organic glass, mainly for proceeding variety of low temperature test.
1. Inner test chamber size: L600 × H500 × W500mm
2. Outer chamber size: L1700 × H950 × W850mm
3. Inner chamber material: stainless steel plate(SUS#304)
4. Outer chamber material: stainless steel plate(SUS#304)
5. Heat preservation material: low temperature tank: high density PU foam
6. Total power: 3.5KW
7. Supply voltage: AC220V 50HZ
8. Working current: 15A
9. Temperature range: room temperature～-40℃
10. Cooling time: room temperature～-40℃ about 45 minutes to reach
11. Weight: about 200KG
