| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | PCF-1B |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Power Cord, Swivel Connections | Standard: | IEC 60335-1, IEC60745-1, IEC 60335-2-23 |
|---|---|---|---|
| Test: | Flexing Test | Current Loading: | Max. 15A |
| Voltage Loading: | 0-250V | Load Capacity: | 4KW |
| Flexing Angle: | 0-360° | Flexing Speed: | 8-60cycles/min |
| Test Cycles: | 0-999999 | Load Weight: | 1N, 5N, 10N |
| Highlight: | electrical appliance tester,portable appliance testing equipment |
||

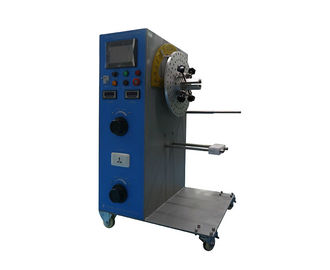

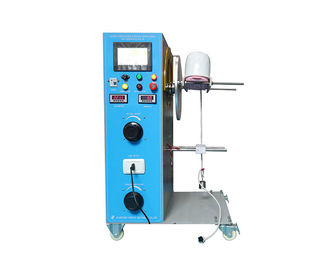

Power Cord Flexing & Swivel Connections Test Apparatus PCF-1B
Description:
This device is used to check that the supply cord and swivel connections of the small household appliances (such as Coffee pot / electric iron), handheld motor operated electrical tools and lamps is adequately protected against excessive flexing where it enters the appliance.
According to the standard IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23.
Technical parameters:
| Parameters / Model | PCF-1B |
| Input Power | AC220V 50HZ |
| Control Method | PLC control, touch screen operation |
| Station | One |
| Drive Mode | Electrical |
| Flexing Angle | 0-360°, preset on the touch screen |
| Flexing Speed | 8-60cycles/min, can be preset |
| Test Cycles | 0-999999, can be preset |
| Loading Weight | 1N, 5N,10N |
| Loading Voltage | 0-250V, can be regulated |
| Loading Current | Max. 15A |
| Loading Capacity | 4KW |
| Sample judgment | Judge the conduction by current |
Test sample: IEC60335-1 clause 25.14. Figure 8, 24.12 of IEC60745-1 Figure 9. 25.101 and 11.101 of IEC60335-2-23.
Feature: The test stations, test angles, load voltage can be customized. The test cycles, speed, voltage and etc. can be preset. Easy operation and suitable for various test objects.
