We provide you with industry leading test equipment,
advanced online system and solutions–anywhere in the world.
 |
| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Third part calibration certificate(cost additional) |
| Model Number: | HDX1305 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | plywood |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20 set per month |
| Test Object: | Completed Flexible Cables | Standard: | IEC60245-2 |
|---|---|---|---|
| Test: | Flexing Test | Current Loading: | 0-25A |
| Voltage Loading: | 0-400V | Testing Speed: | 0.1m/S |
| Testing Distance: | 1000±20mm | Test Times: | 1000 Times (Reciprocating 2000 Times) |
| Suitable Wire Diameter: | 0.75-1.5 Mm² | Pulley Diameter: | 40,45,50mm (Standard Equipped) |
| High Light: | power cable tester,electric wire tester |
||

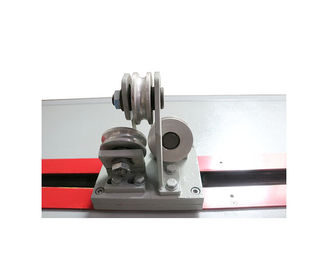

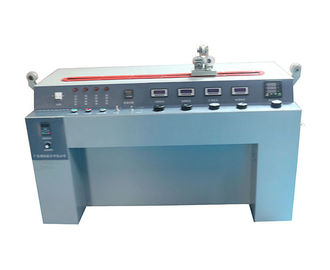

Three Pulley Flexing Tester HDX1305
| Test object | Completed flexible cables |
| Test | Flexing test |
| Standard | IEC60245-2 |
| Current loading | 0-25A |
| Voltage loading | 0-400V |
| Testing speed | 0.1m/S |
| Testing distance | 1000mm |
| Number of test times | 1000 times (Reciprocating 2000 times) |
| Suitable wire diameter | 0.75-1.5 mm² |
| Pulley diameter | 40,45,50mm (Standard equipped) |
| Weight | 21,28,42N (Standard equipped) |
| Fault testing | Current interruption, short circuit between conductors, test and short circuit between the pulley |
| Power supply | 220VAC 50Hz |
Description:
This device is used for checking mechanical strength of completed flexible cables.
According to the standard IEC60245-2 clause 3.5 Figure6, Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.
Test sample: Completed flexible cables.
Feature: During the test with 1000 cycles, i.e. 2000 single movements, neither interruption of the current, nor short-circuit between the conductors, nor short circuit between the cable and the pulleys (the flexing apparatus) shall occur.
