Merchanical Strength Cable Testing Equipment For Completed Flexible Cables

Name: Merchanical Strength Cable Testing Equipment For Completed Flexible Cables
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HDX1302
Price: 5,000.00 USD
Availability: InStock

Brand Name:	HongCe
Model Number:	HDX1302
MOQ:	1 set
Price:	Negotiatable
Payment Terms:	T/T
Supply Ability:	20 set per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Third part calibration certificate(cost additional)

Test Object:

Completed Flexible Cables

Standard:

IEC60245-1, IEC60245-2

Test:

Flexing Test

Current Loading:

0-25A

Voltage Loading:

0-400V

Testing Speed:

0.33m/S

Testing Distance:

1000±20mm

Suitable Cores:

2-18

Nominal Cross-sectional Area:

0.2~4mm2

Diameter Of Pulleys:

3 Piece, 60, 80, 120, 160, 200 For Options

Packaging Details:

plywood

Highlight:

power cable tester

electric wire tester

Product Description

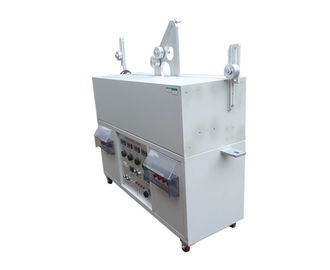

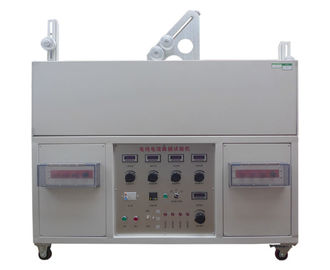

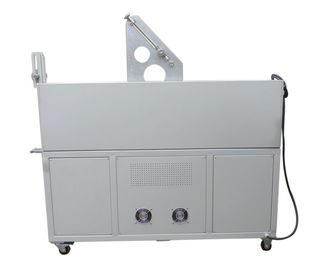

Flexible Cables Flexing Tester HDX1302

Test object	Completed flexible cables
Test	Flexing test
Standard	IEC60245-1, IEC60245-2 figure 1
Current loading	0-25A
Voltage loading	0-400V
Testing speed	0.33m/S
Testing distance	1000mm
Suitable cores	2-18
Nominal cross-sectional area	0.2~4mm2
Diameter of pulleys	3 piece, 60, 80, 120, 160, 200 for options
Combined weights	0.5kg, 1kg, 1.5kg, 2kg, 2.5kg, 3kg, 3.5kg, 4kg, 6kg, 7.5kg, 8kg
Fault testing	Current interruption, short circuit between conductors, test and short circuit between the pulley.
Power supply	220VAC 50Hz

Description:

This device is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.

According to the standard IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements, IEC60245-2 clause 3.1 Figure 1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

Test sample: Completed flexible cables.

Feature: This cable tester consists of a carrier C (see IEC60245-2 Figure 1),a driving system for the carrier and four pulleys for each sample of cable to be tested. The carrier C supports two pulleys A and B, which are of the same diameter. The two fixed pulleys, at either end of the apparatus, may be of a different diameter from pulleys A and B, but all four pulleys shall be so arranged that the sample is horizontal between them. The carrier makes cycles (forward and backward movements) over a distance of 1 m at an approximately constant speed of 0,33m/s between each reversal of the direction of movement. A sample of flexible cable about 5 m long shall be stretched over the pulleys, each end being loaded with a weight. The mass of this weight and the diameter of pulleys A and B are given in following table.
