Impact Testing Mechanical Testing Machine Calibration Device For Spring Impact Hammer As Per Annex B

Impact Testing Mechanical Testing Machine Calibration Device For Spring Impact Hammer As Per Annex B

Brand Name: HongCe
Model Number: SH-7
MOQ: 1 set
Price: Negotiatable
Payment Terms: T/T
Supply Ability: 20 set per month
Detail Information
Place of Origin:
China
Certification:
Third part calibration certificate(cost additional)
Test Object:
Calibration Device
Standard:
IEC 60068-2-75 Annex B
Test:
Calibration
Accuracy:
0.01J
Repeat Accuracy:
±0.01J
Measurement Range:
0~2J
Calibration Device For Spring Impact Hammer:
<0.002J
Balance Weight:
2J Copper Weight 1 Piece
Packaging Details:
plywood
Highlight:

impact test equipment

,

impact test machine

Product Description

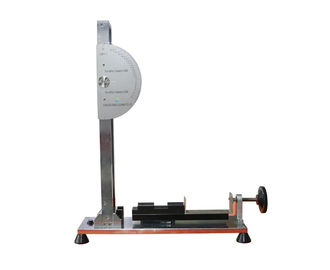

Calibration Device for Spring Impact Hammer SH-7





Specifications:

Test object Spring operated impact hammer
Reference standard

IEC 60068-2-75 Annex B;

IEC 60068-2-63 Annex A

Test Accuracy calibration
Accuracy 0.01J
Repeat accuracy ±0.01J
Measurement range 0~2J
Guide groove diameter 51mm
The energy loss of the pendulum <0.002J
Trigger distance >30mm
Balance weight 2J Copper weight 1 piece
Material Stainless steel



Description:

This device is intended to verify the impact energy of spring operated impact hammers, measurement range of 0-2J.

Test object is 0-2J Spring operated impact hammers.

Spring impact hammer is the portable impact testing machine for testing the merchanical strength of enclosures and materials. This device is use to calibrate the spring impact hammer impact energy.

Its design and manufactured according to the test requirements of IEC 60068-2-63 Annex A, IEC 60068-2-75 Annex B.



Feature:

Comply with the requirement of standard IEC60068-2-63 and IEC60068-2-75


  • Accuracy: 0.01J
  • Repeat accuracy: ±0.01J
  • Measurement range: 0~2J
  • Guide groove diameter: 51mm
  • The energy loss of the pendulum: <0.002J
  • Trigger distance: >30mm
  • Balance weight: 2J Copper weight 1 piece
  • Material: stainless steel,
  • Advantages: statble and reliable, easy operation, nice appearance
