Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below
Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below
Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: calibration certificate
Model Number: HC9921
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: plywood
Delivery Time: 25 days
Payment Terms: T/T
Supply Ability: 10 set /month
Contact Now
Detailed Product Description
Product Name: Pendulum Hammer Test Apparatus Warranty: 1 Year
Standard: IEC60884-1 Application: Mechanical Strength Test
Function: Impact Test Pendulum Length: 1000mm
Pendulum Weight: 100±1g Striking Element: 150g

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below



The Pendulum Hammer Impact Testing Machine is designed to meet the requirements of IEC 60884-1 2013 clause 24.1 and figures 22 - 26, IEC 60669-1, and IEC 60068-2-75. It is mainly used for the mechanical strength test of plugs, socket-outlets, surface type mounting boxes, screw glands, gland covers, switches and other electrical accessories for household and similar purposes.

Key Features

The mounting bracket of the machine has the flexibility to move up and down, left and right, and the impact angle can be adjusted as needed. It is a low energy pendulum impact device with an energy level of 2J and below.

Parameters

Component Specification
Pendulum Length: 1000mm; External diameter: 9mm; Steel pipe wall thickness: 0.5mm; Material: steel; Weight: 100±1g
Mounting bracket Weight: 10±1 kg; Adjustable in horizontal and vertical directions; Can be rotated 90° through the rotation axis
Striking element 150g (200g striking element available as an option); Equivalent mass 200g
Impact energy, equivalent mass and drop height
Energy/J 0.14
Equivalent mass /kg 0.25
Drop height ±1%mm 56

Operation Method

The operation of the testing machine is through manual release of the striking element. This allows for precise control during the testing process to ensure accurate and reliable test results for the electrical accessories being tested.



Picture view:

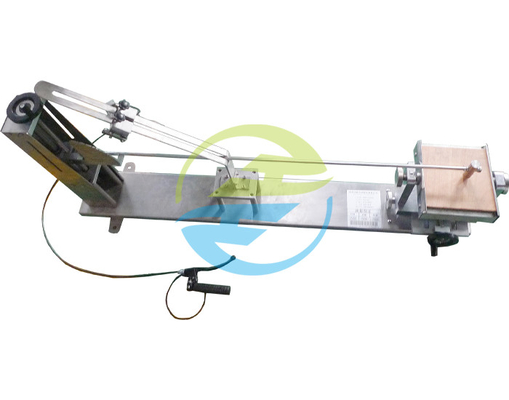

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below 0

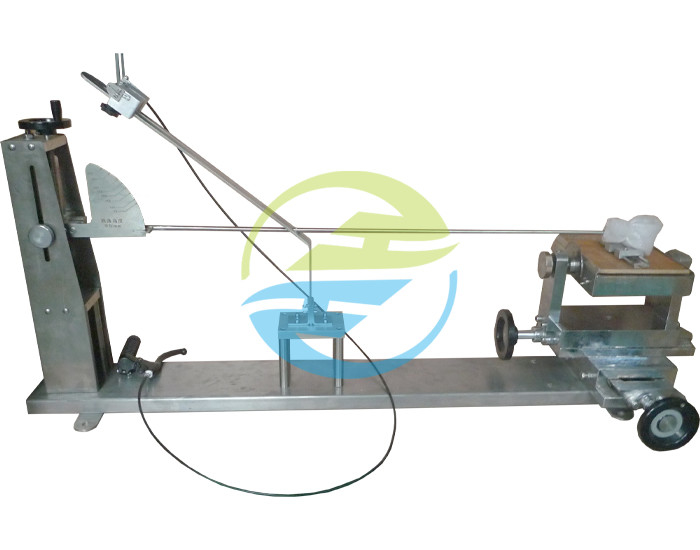

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below 1

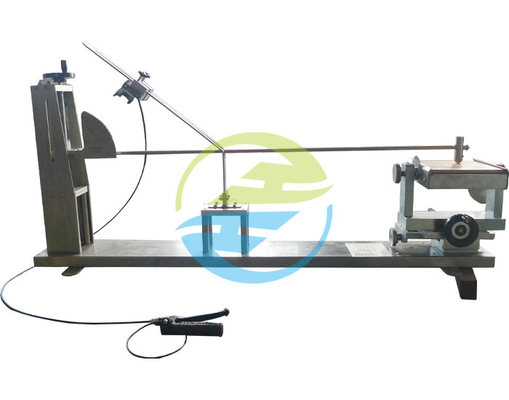

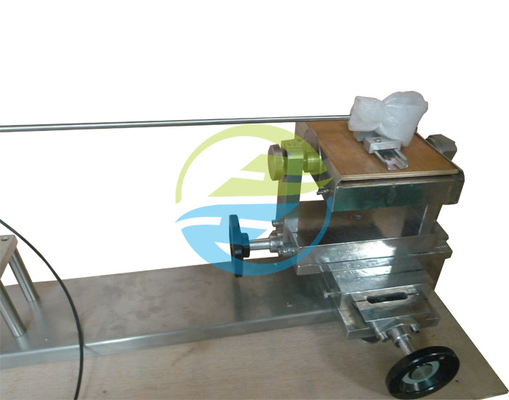

Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below 2Pendulum Hammer Impact Testing Machine - IEC 60884-1, Energy 2J and Below 3
