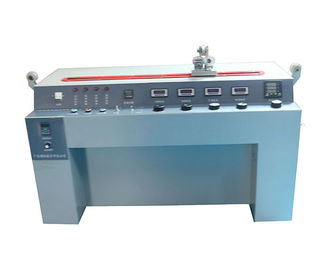

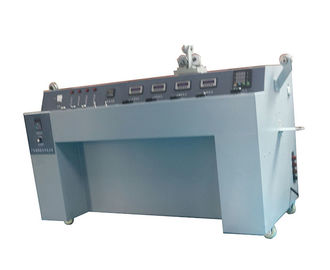

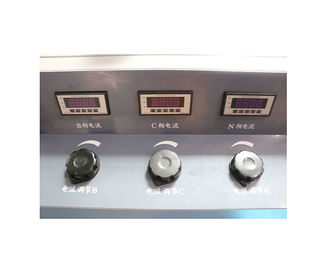

Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed

Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed

  • Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed
  • Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed
  • Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed
  • Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed
Completed Flexible Cable Testing Equipment with 0.1 m / S Test speed
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Calibration Certificate(cost additional)
Model Number: HDX1305
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Standard export packing
Delivery Time: 15 days
Payment Terms: T/T, PayPal, D/A, Western Union, MoneyGram, L/C
Supply Ability: 10 Sets per month
Contact Now
Detailed Product Description
Load Current: 0-25A Load Voltage: 0-400V
Test Speed: 0.1m/S Test Stroke: 1000±20mm
Number Of Test Times: 1000 Times Suitable Wire Diameter: 0.75-1.5 Mm²
High Light:

material testing equipment

,

electric wire tester

Completed Flexible Cables Three Pulley Flexing Test Machine For IEC60245-2 Figure 6







Standard:IEC60245-2 clause 3.5 Figure6, Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.



Application:It is used for checking mechanical strength of completed flexible cables.



Test sample:Completed flexible cables.



Feature:During the test with 1000 cycles, i.e. 2000 single movements, neither interruption of the current, nor short-circuit between the conductors, nor short circuit between the cable and the pulleys (the flexing apparatus) shall occur.



After the required number of cycles the sheath of the cable shall be removed. The cores shall then withstand the voltage test carried out in accordance with 2.3, at a voltage specified in IEC 60245-8.



Parameters(mm):

Power supply AC220V,50Hz
Load current 0-25A
Load voltage 0-400V
Test speed 0.1m/S
Test stroke 1000±20mm
Number of test times 1000 times (Reciprocating 2000 times)
Suitable wire diameter 0.75-1.5 mm²
Pulley diameter 40,45,50mm (Standard equipped)
Weight 21,28,42N (Standard equipped)
Fault testing Current interruption, short circuit between conductors, test and short circuit between the pulley





Test method:

The test shall be carried out in accordance with 3.1 except for the following modifications to the apparatus described hereafter.



a) Carrier

The apparatus described in 3.1 shall have a modified carrier C, as shown in figure 6.



b) Pulley wheels

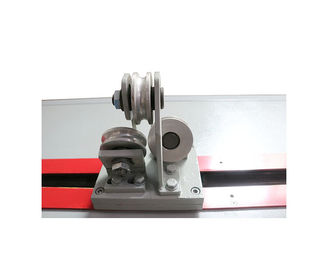

The three pulley wheels of modified carrier C shall be of equal diameter in accordance with table 3.



Table 3-Diameter of pulley wheels

Cable type

(number and nominal cross-sectional area of conductors)

No.x mm²

Diameter of pulley wheels

mm

2x0.75

2x1

3x0.75

2x1.5

3x1

3x1.5

40

40

40

45

45

50



c) Speed of carrier

The constant speed of the modified carrier C shall be approximately 0.1 m/s.



d) Weight

The weight applied to stress the conductor as described in 3.1 shall be calculated on the basis of 28 N/mm² of the conductor cross-section.
