LCD Color Touch Screen Electrical Appliance Tester With RS232 Serial Port

Detail Information

Place of Origin:

China

Certification:

Calibration Certificate(cost additional)

Display:

7-inch Large LCD Color Touch Screen

Number Of Channels:

Measurement Precision:

± 0.3% Rdg + 1 ℃

Measuring Range:

-50 ~ 1000 ℃

Packaging Details:

Standard export packing

Highlight:

Product Description

IEC60335-1 Clause 11 8 Channels Temperature Recorder Electrical Appliance Tester

Standard:IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.

Application:Used for the temperature rise test of all kinds of motor-operated appliances and electrical products.

Test sample:Household appliances, such as microwave ovens, refrigerators.

Feature:The number of test channel can be custom-made (16 or 32).

Parameters(mm):

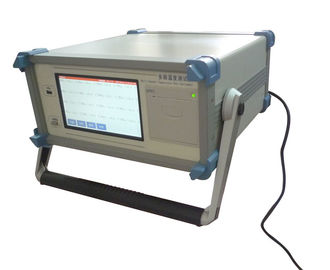

7-inch large LCD color touch screen imports, an interface can display 8 channels temperature and temperature rise curve simultaneously
Measurement precision	± 0.3% rdg + 1 ℃ Resolution: 0.1 ℃ Measuring range: -50 ~ 1000 ℃
With RS232 serial port, serial communication with the computer
Test software content	collection, storage temperature data and draw temperature curve
Configure the micro printer supports manual printing, automatic printing multi-channel temperature data, print measurement time interval set by the user. Meet the needs of the user's site to print
Optional upper and lower limit alarm function
Configure the USB storage function, support U 4G disk

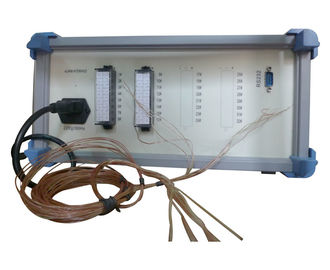

Configure the 2 meters / pc of imported type K thermocouple. (temperature range of -50 ~ 260, 0.255mm)
Can operate with temperature probe charged (within250V) and will not damage the instrument itself
Environment	Operating Temperature 0 - 40 ℃ humidity of 60% ± 30%
Power supply	AC220V ± 10% 50Hz / 60Hz Total power consumption <15W
Dimensions	300mm (width) × 320mm (length) × 150mm (high)
