| Place of Origin: | China |
| Brand Name: | HongCe |
| Certification: | Calibration Certificate(cost additional) |
| Model Number: | HJ0601 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7 days |
| Supply Ability: | 50 Sets per month |
| Size: | 600X600X1000mm | Thermocouple: | K Type Thermocouple |
|---|---|---|---|
| The Number Of Temperature Measuring Points: | 20、32、48、64（it Can Be Customized） | Structure: | 1 Bottom Plate, 2 Side Plates, 1 Top Plate |
| High Light: | electrical appliance tester,portable appliance testing equipment |
||

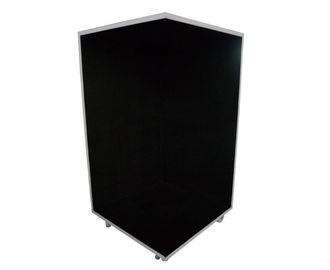

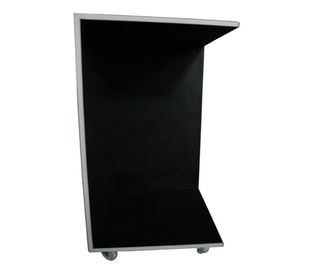

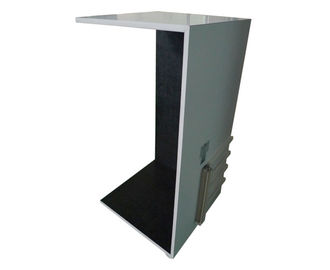

IEC60335-1 Clause 11 Temperature Measurement Corner Electrical Appliance Tester
Standard:IEC60335-1 clause 11 Household and similar electrical appliances-safety-Part 1:General requirements.
Application:Used for the temperature rise test of all kinds of motor-operated appliances and electrical products to meet the requirements of the environmental conditions.
Test sample:Household appliances, such as microwave ovens, refrigerators.
Feature:Can make different distribution specifications, the number of temperature measurement points and outline dimension according to the actual test samples.
Parameters(mm):
| Size |
600X600X1000mm,800X800X1000mm,1000x1000x1200mm(it can be customized) |
| Thermocouple | American original OMEGA thermocouple K type with diameter less than 0.3mm |
| The thermocouple arrangement |
All leads on a connection line(optionally equipped with thermocouple plug and socket) |
| The sheet copper used for temperature measurement |
The diameter of 15mm and the thickness of 1mm |
| The number of temperature measuring points | 20,32,48,64(it can be customized) |
| The arrangement of temperature measuring points | 100*100mm or 76*76mm square(it can be customized) |
| Plywood | The thickness is 20mm and the front side is painted with Berlin black and the reverse side is with gray film back |
| The movable part | There are 4 removable wheels installed on the bottom of the device |
| Structure | 1 bottom plate, 2 side plates, 1 top plate |
| Temperature recorder | Optionally. |
