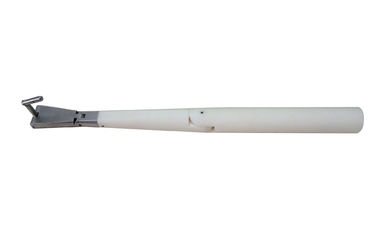

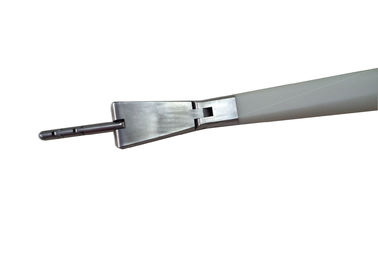

EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5

EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5

  • EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5
  • EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5
  • EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5
  • EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5
EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5
Product Details:
Place of Origin: China
Brand Name: HongCe
Certification: Third party calibration certificate(cost additional)
Model Number: HT-E01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiatable
Packaging Details: Carton Box
Delivery Time: 15 days
Payment Terms: T/T, Western Union
Supply Ability: 50 PC/Month
Contact Now
Detailed Product Description
Finger Probe Diameter: Ø50mm Standard: EN 50636-2-100
Material: Stainless Steel
Highlight:

iec 61032 test probe b

,

iec test finger



EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5







Product information:

The adult arm probe conforms to EN 50636-2-100 figure 2 and EN13683-2003: 5.2.1.3 fig 5. It is used to simulate the adult to test whether the hazardous parts can be touched.



Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.



The arm probe shall not be able to make contact with the hazardous moving parts when it is inserted into the openings up to the entire length of each arm probe. The articulations of each probe shall be manufactured to enable a rotaion of ±90°about the articulation axis. The movements of the joints of each probe shall be free enough to allow easy articulation as the probe is inserted into the opening. Each probe shall be applied with force not exceeding 20 N.



The arm probe shall not contact the hazardous moving parts. When the test is conducted with the debris collector in place it shall not be possible to push any part of the debris collector into hazardous moving parts.



Main specification and corresponding technical parameters:



Parameters /Model Adult Arm Probe HT-E01
1 Ф12
2 Ф50
3 Ф60
4 Ф60
5 90°
6 60mm
7 80mm
8 180mm
9 550mm
10 850mm





EN 50636-2-100 Figure 2 Adult Arm Probe EN 13683-2003 Figure 5 0
