IEC 61032 Test Finger Probe Force Of 75 N , Standard Test Finger With Force

Brand Name:	HongCe
Model Number:	HT-I02T
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/ month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

Item:

Test Finger Probe

Standard:

IEC 61032, IEC60529 Etc.

Force:

5 N To 75 N

Handle Material:

Nylon

Packaging Details:

Aluminum box

Highlight:

iec 61032 test probe b

iec test equipment

Product Description

IEC 61032 Test Finger Probe Force Of 75 N , Standard Test Finger With Force

Product information:

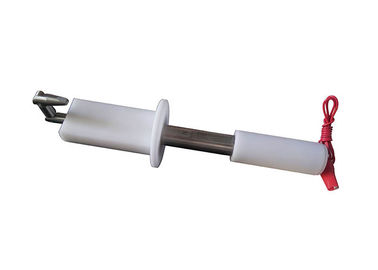

This is a precision test finger made in accordance with many standards like IEC 61032 figure 2, IEC60950 figure 2A,IEC60884,IEC60335,UL507,and UL1278 figure 8.4. This probe is intended to verify the basic protection against access to hazardous parts. It is also used to verify the protection against access with a finger. This test finger probe consists of dito,finger,base and insulated handle which simulates the characteristics of the human hand. It has two movable joints, which can be curved at 90°.

Customizable: it can be used for anti-electric shock test when equipped with pluggable banana plugs and amphenol connector at the end of the handle , or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer).

Technical parameters:

Parameters /Model	HT-I02T
Name	Standard test finger with force
1	30±0.2
2	60±0.2
3	80±0.2
4	180±0.2
5	R2±0.05
6	S4±0.05
7	37^o 0 -10’
8	14^o 0 -10’
9	Ф12 0 -0.05
10	Ф50
11	20±0.2
12	Ф75±0.2
13	5±0.5
14	5~75N with minimum resolution of 5N
15	IEC60529
